2012 GE Jenbacher JGS-416

Equipment Summary

• Quantity: 2 Complete Generator Packages
• Manufacturer: GE Jenbacher

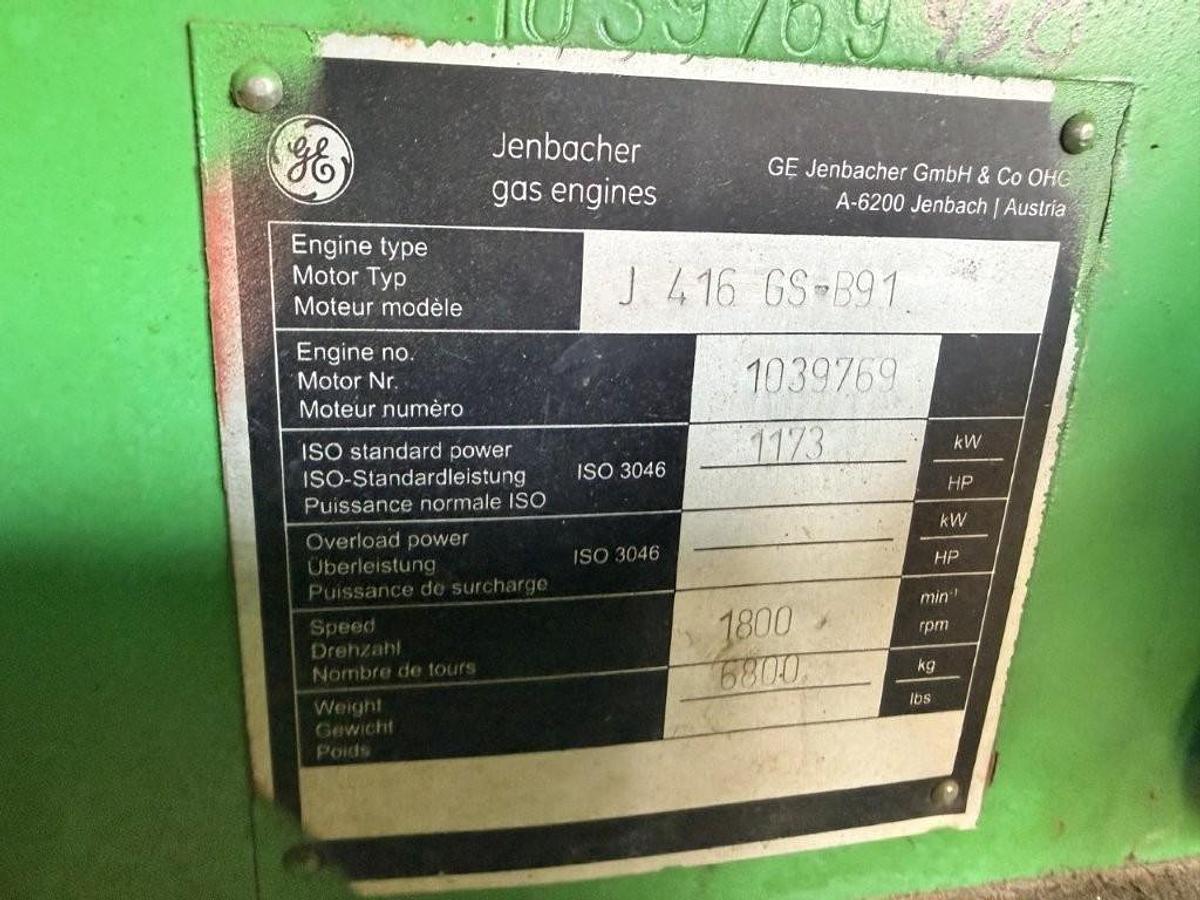

• Model: JGS-416
• Fuel: Natural Gas
• Application: Prime Power
• Rated Electrical Output: 1,127 kW (1.127 MW) each
• Generator Efficiency: Approximately 96%
• Total Combined Capacity: 2.254 MW

Package Details

Each package includes:

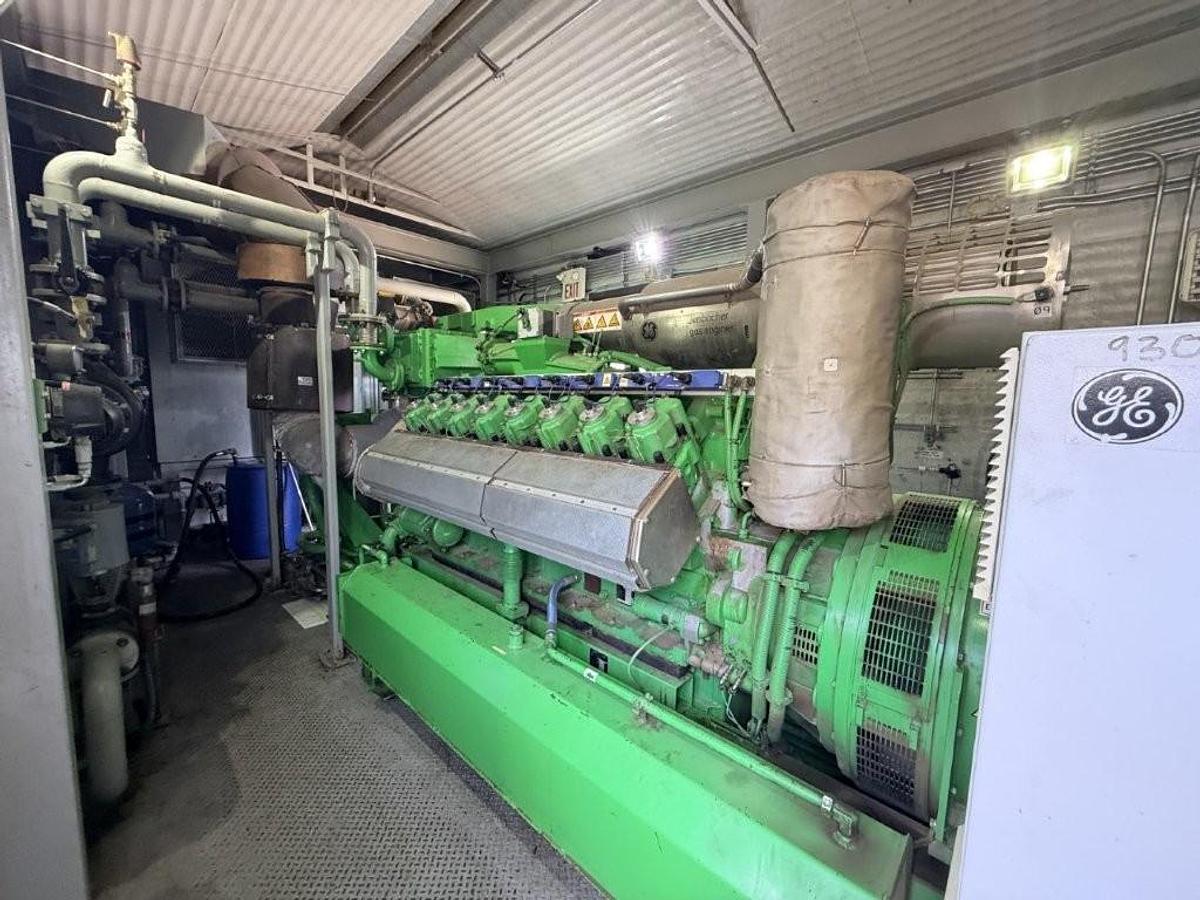

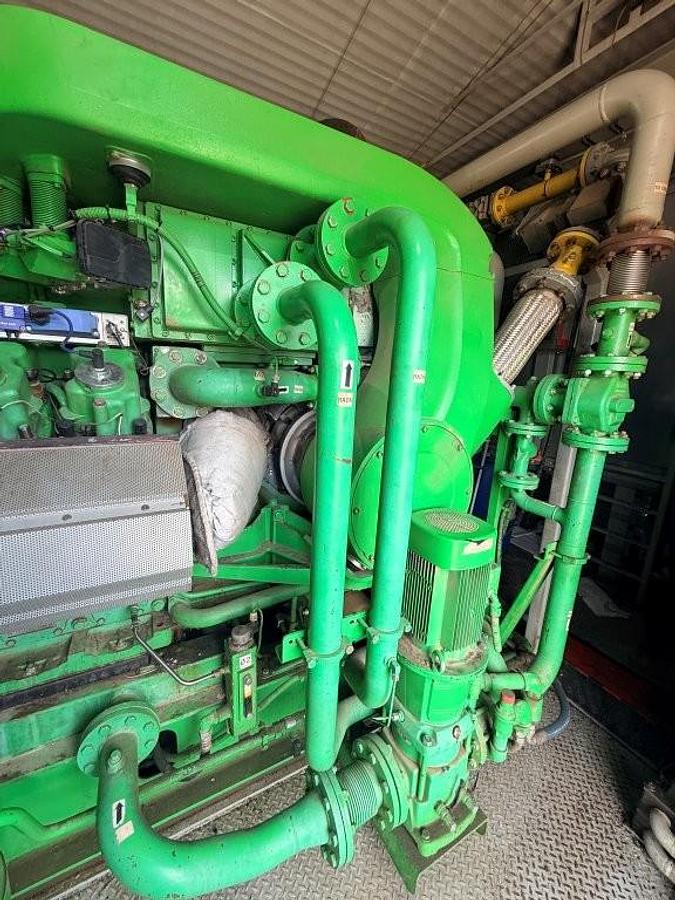

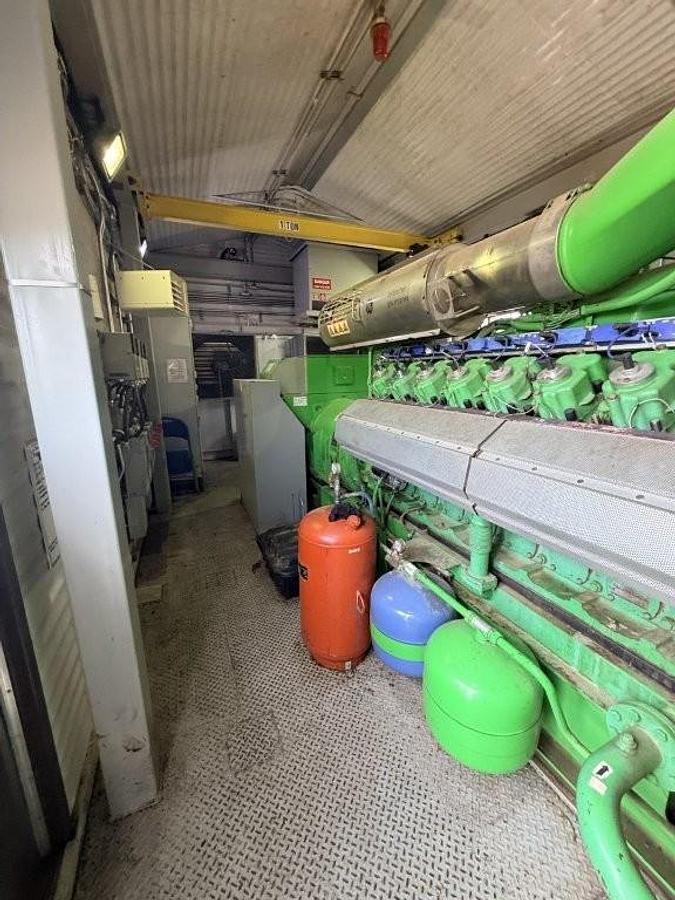

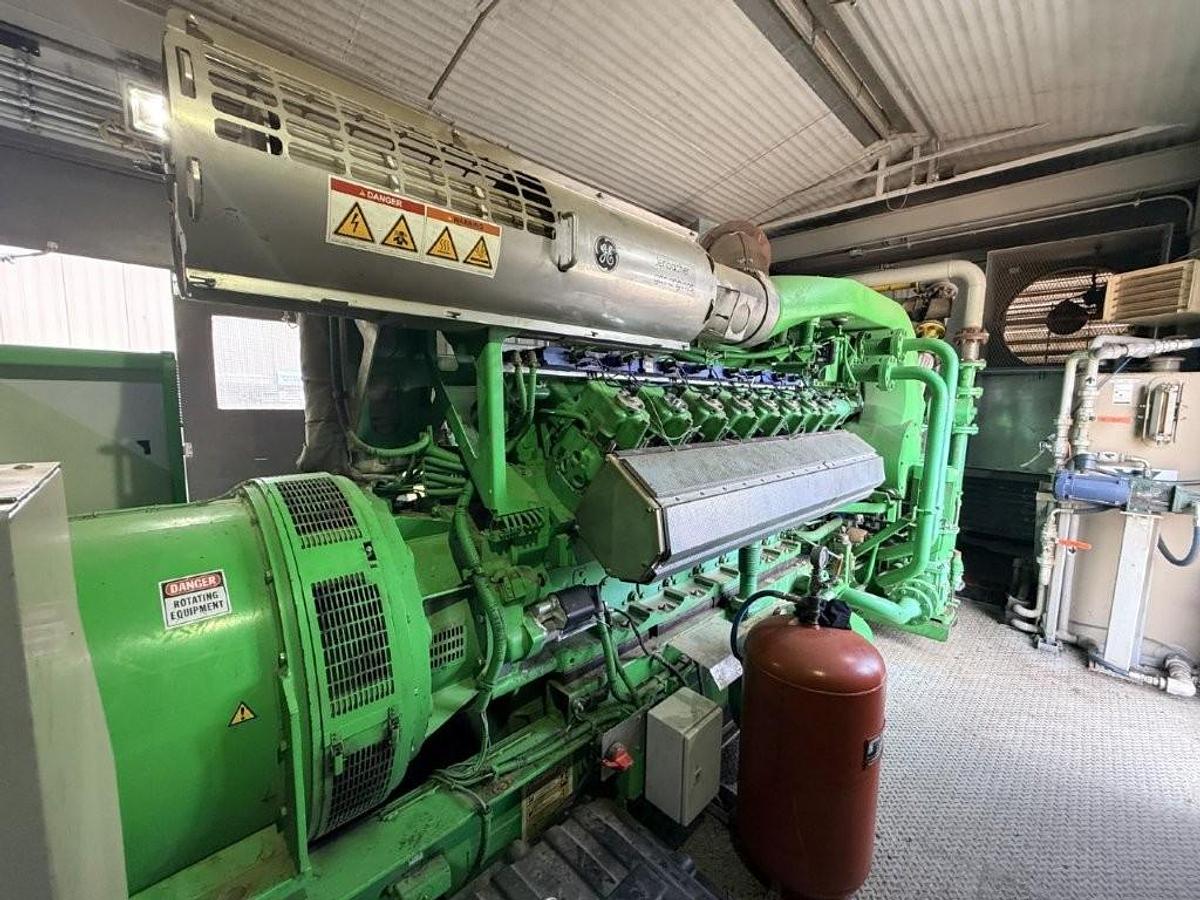

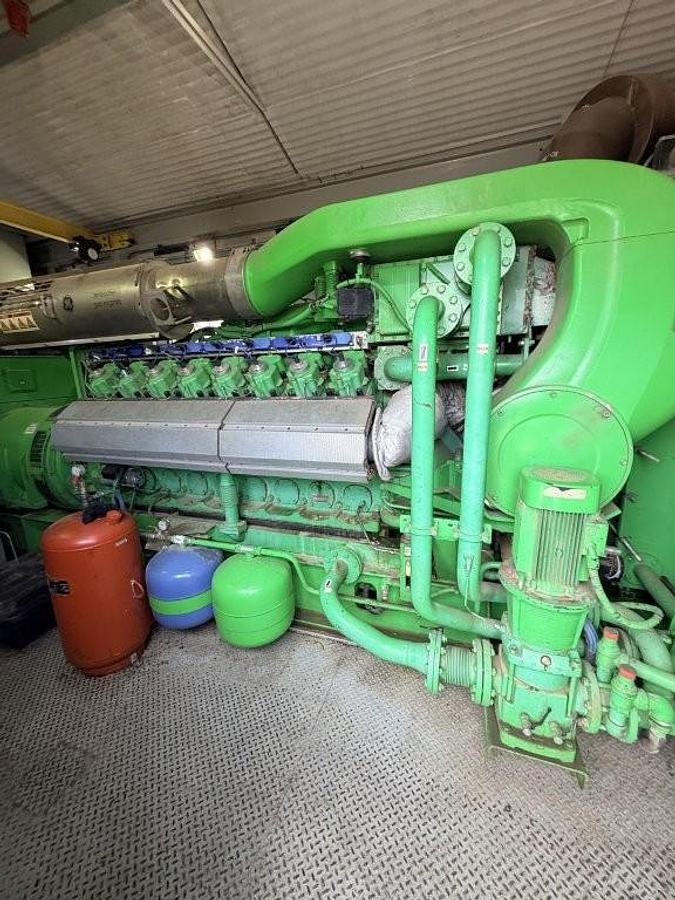

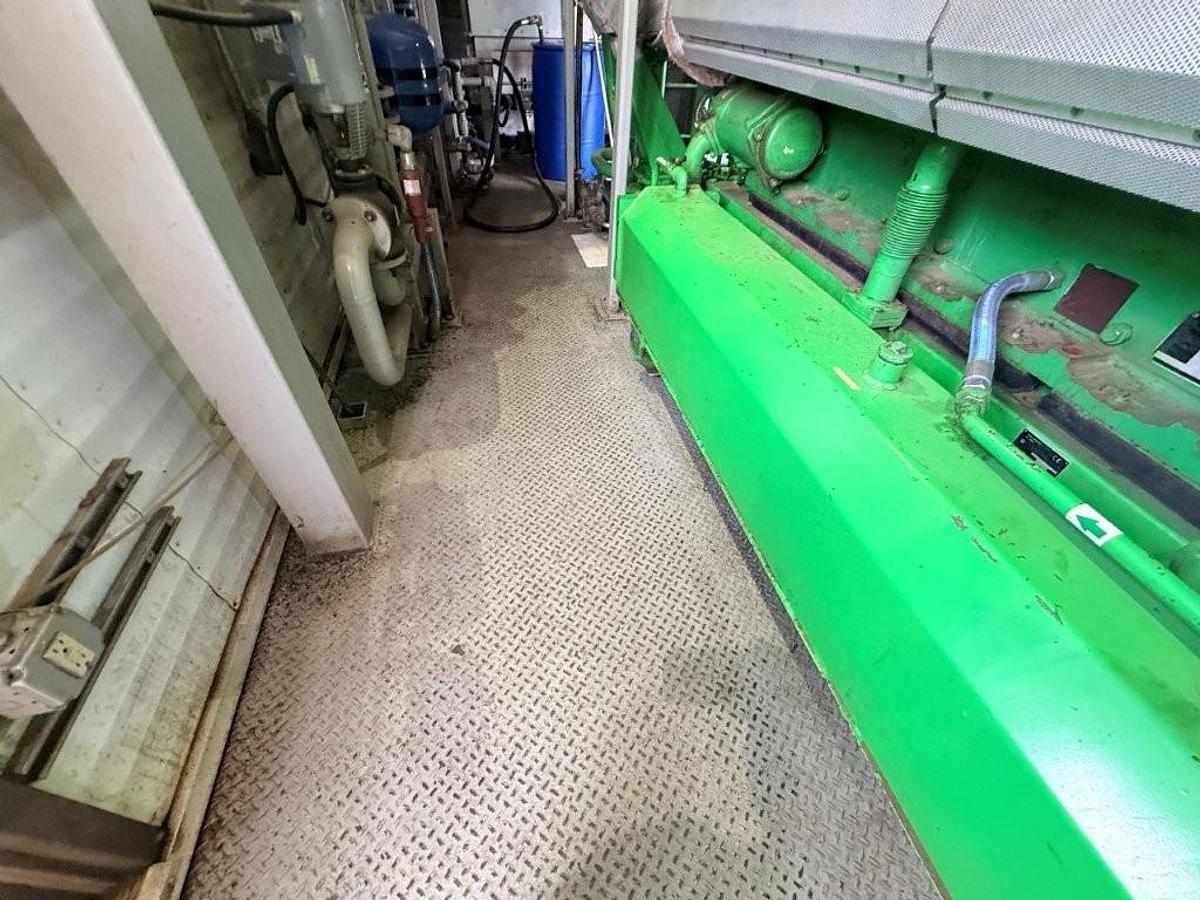

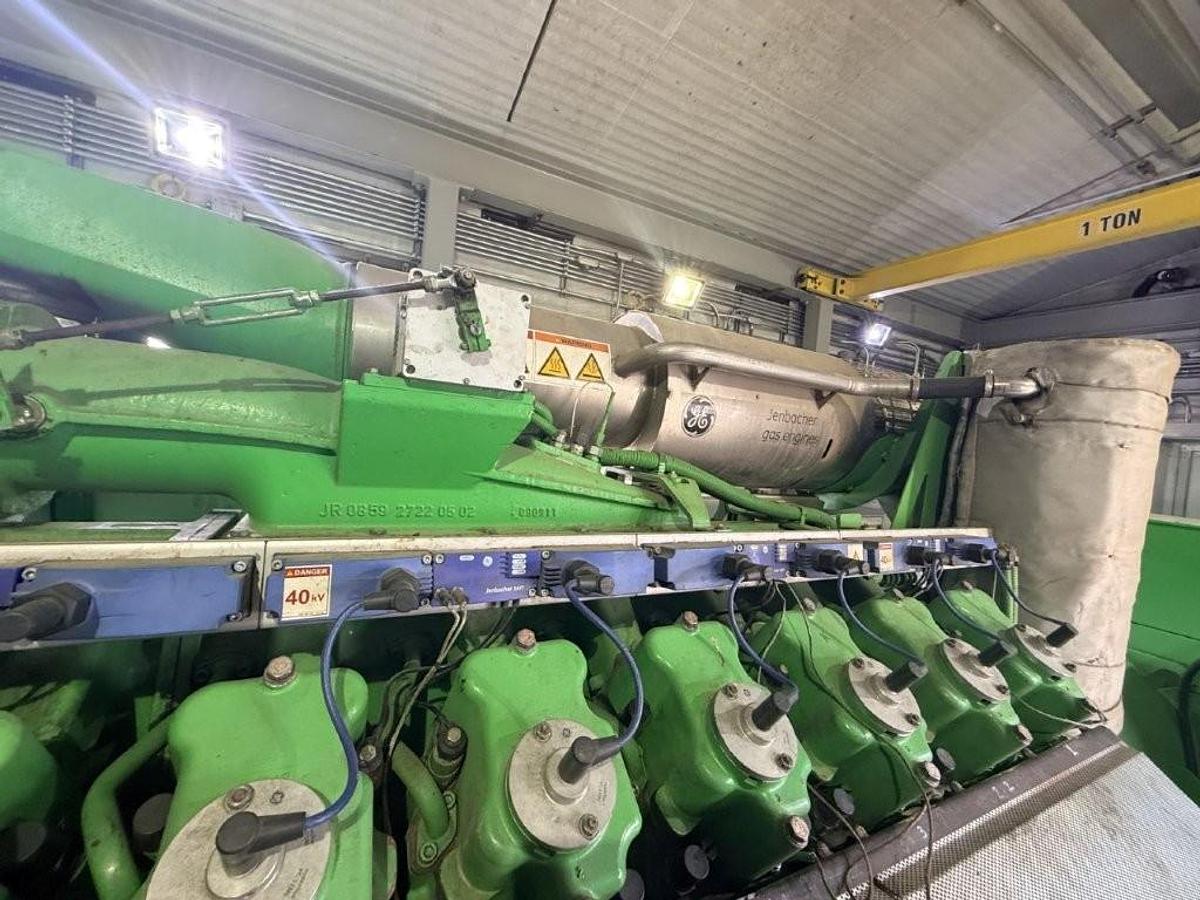

• Complete Jenbacher JGS-416 engine and generator set

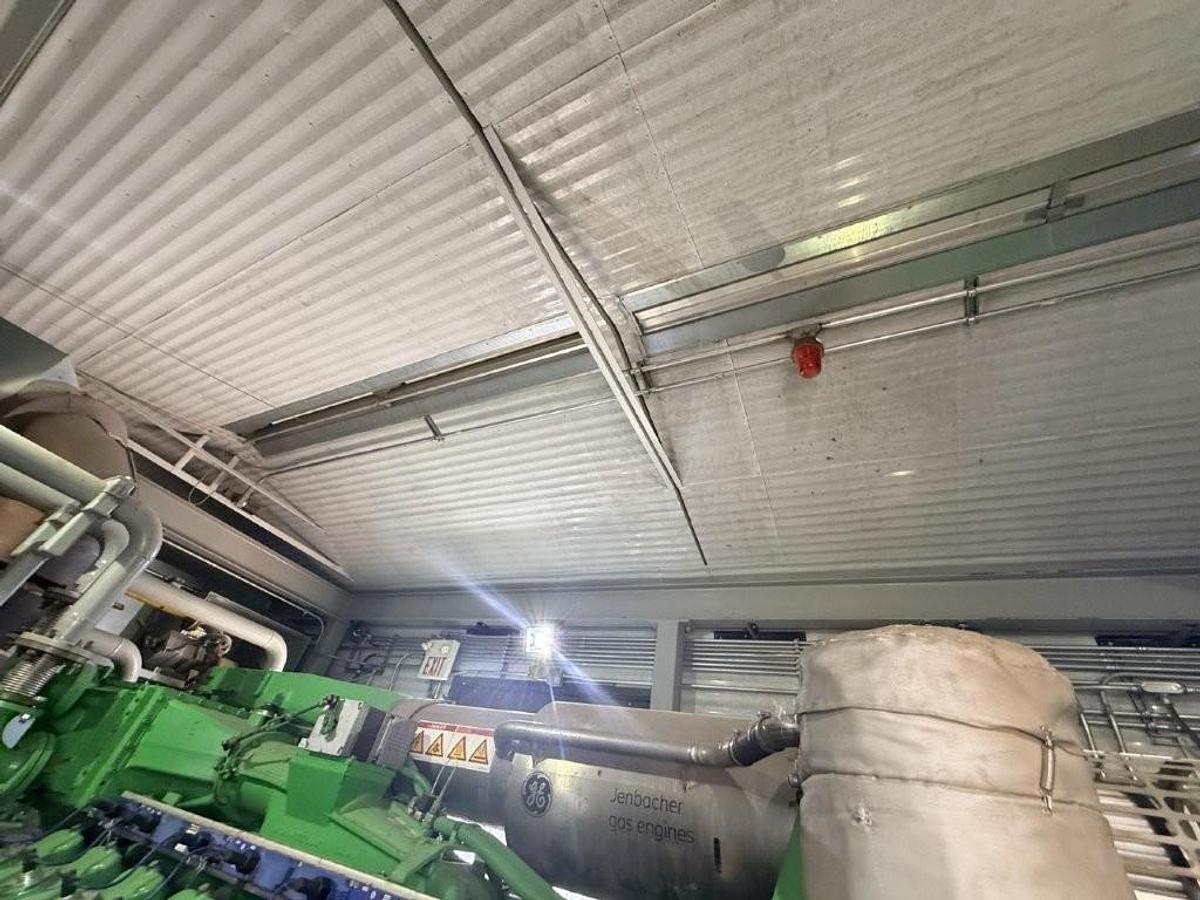

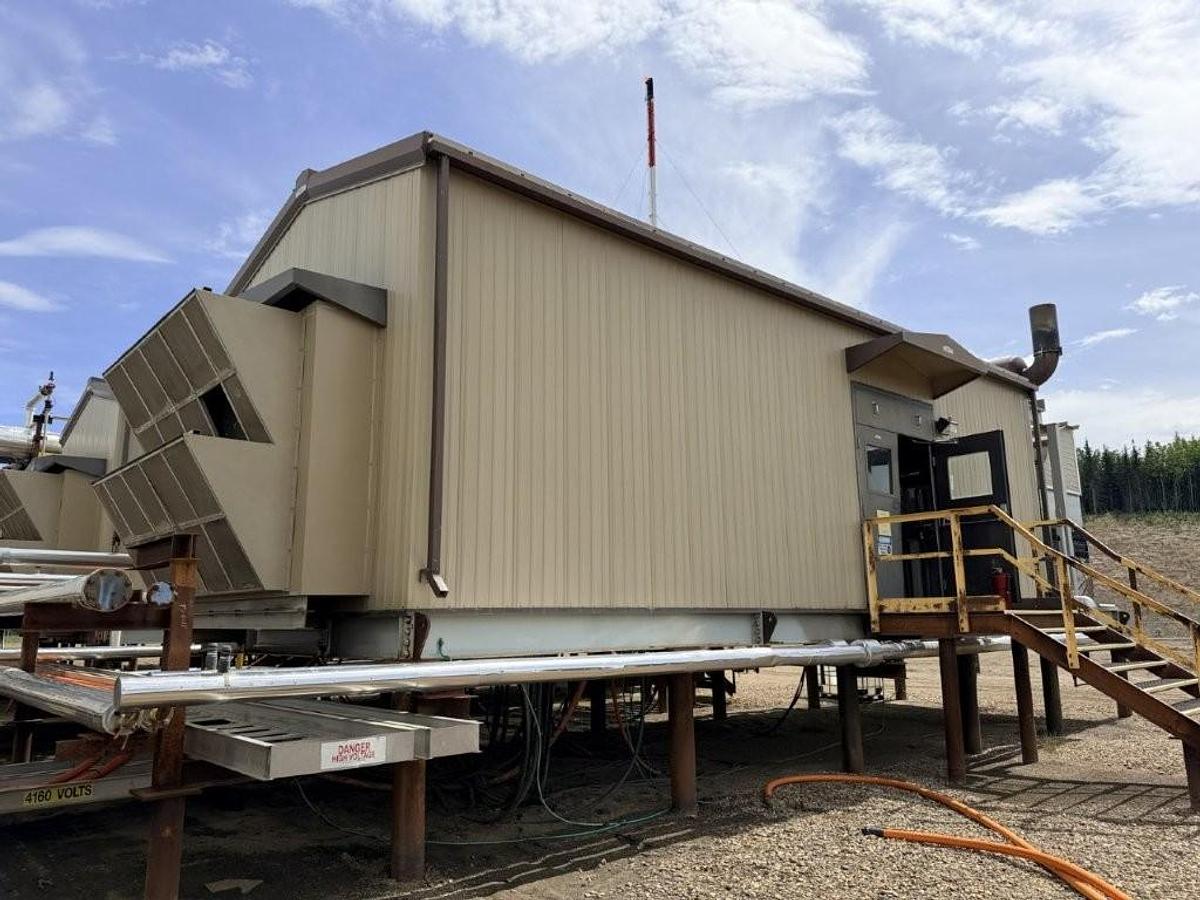

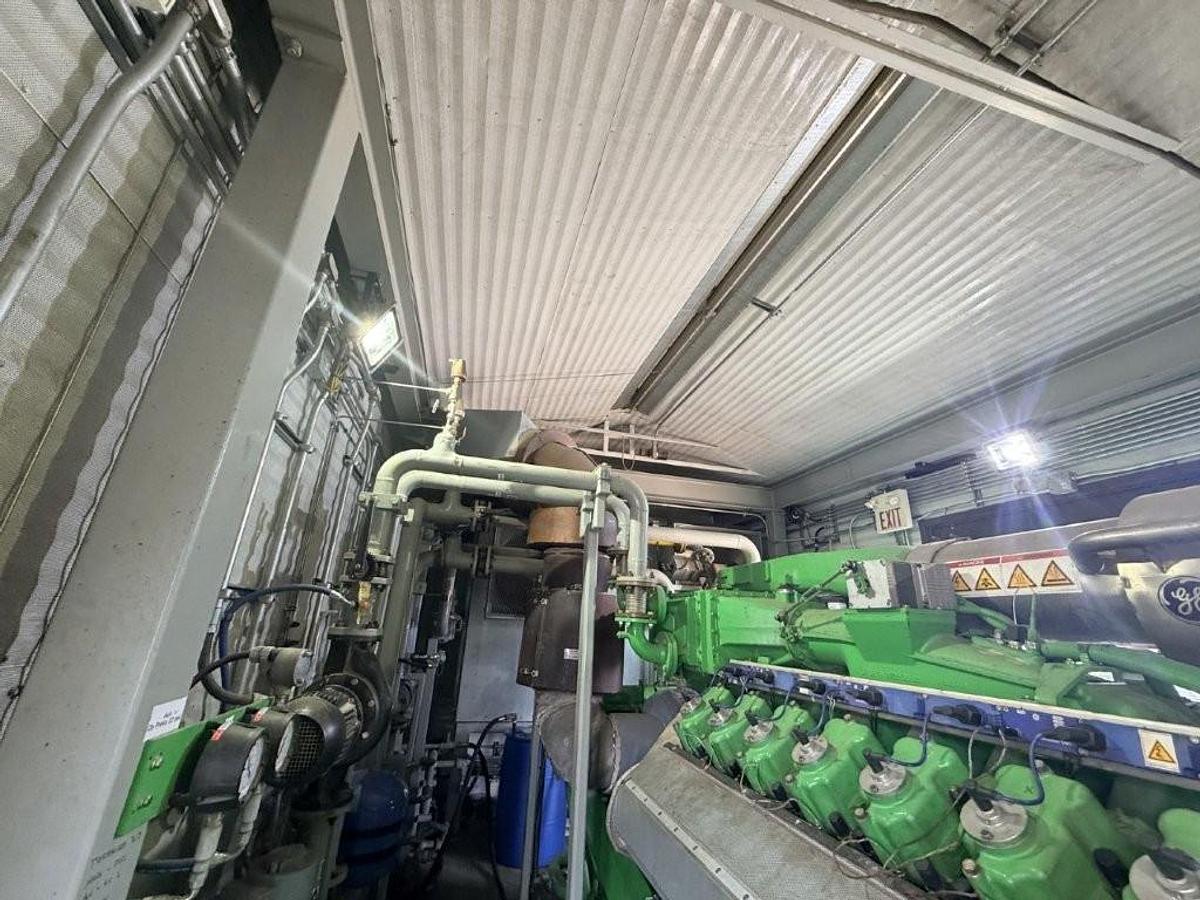

• Fully enclosed weatherproof acoustic building
• Switchgear building

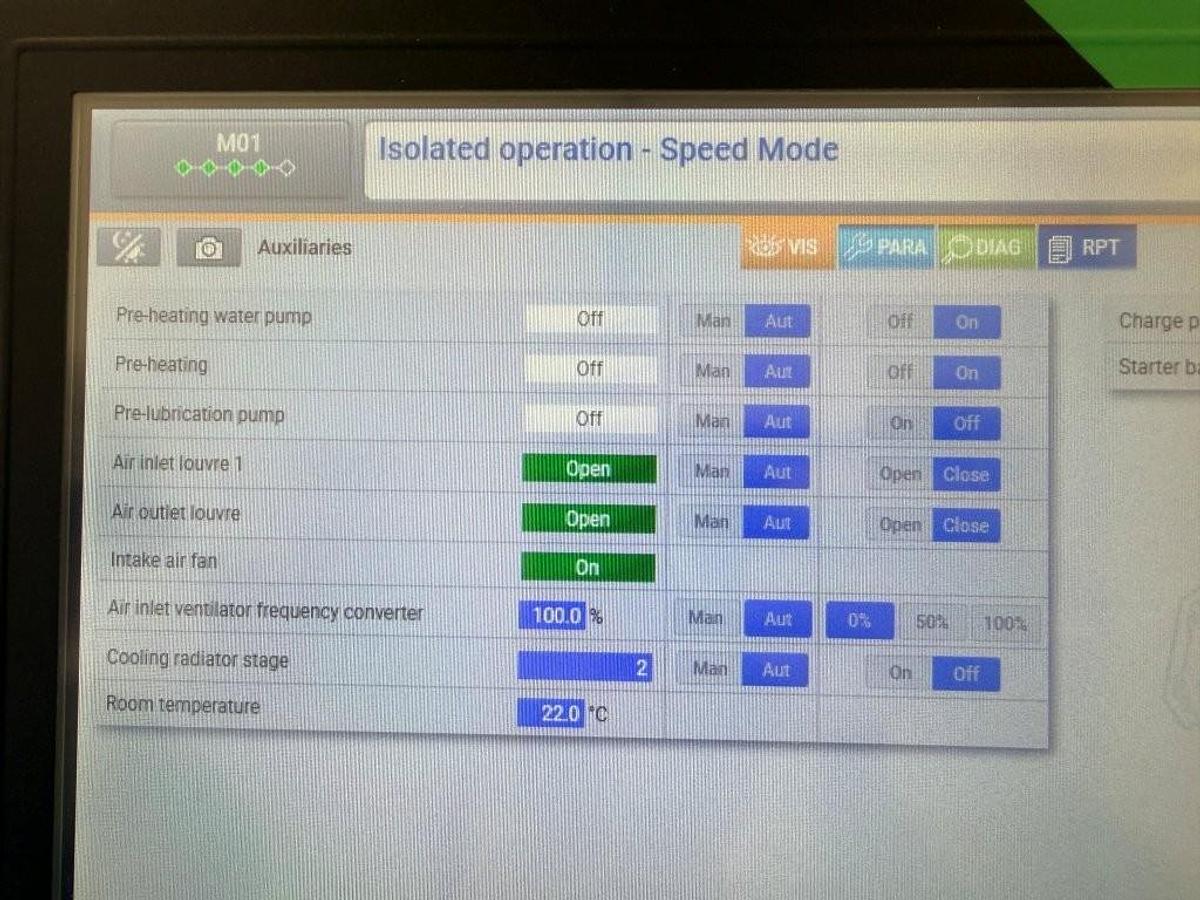

• Ventilation system

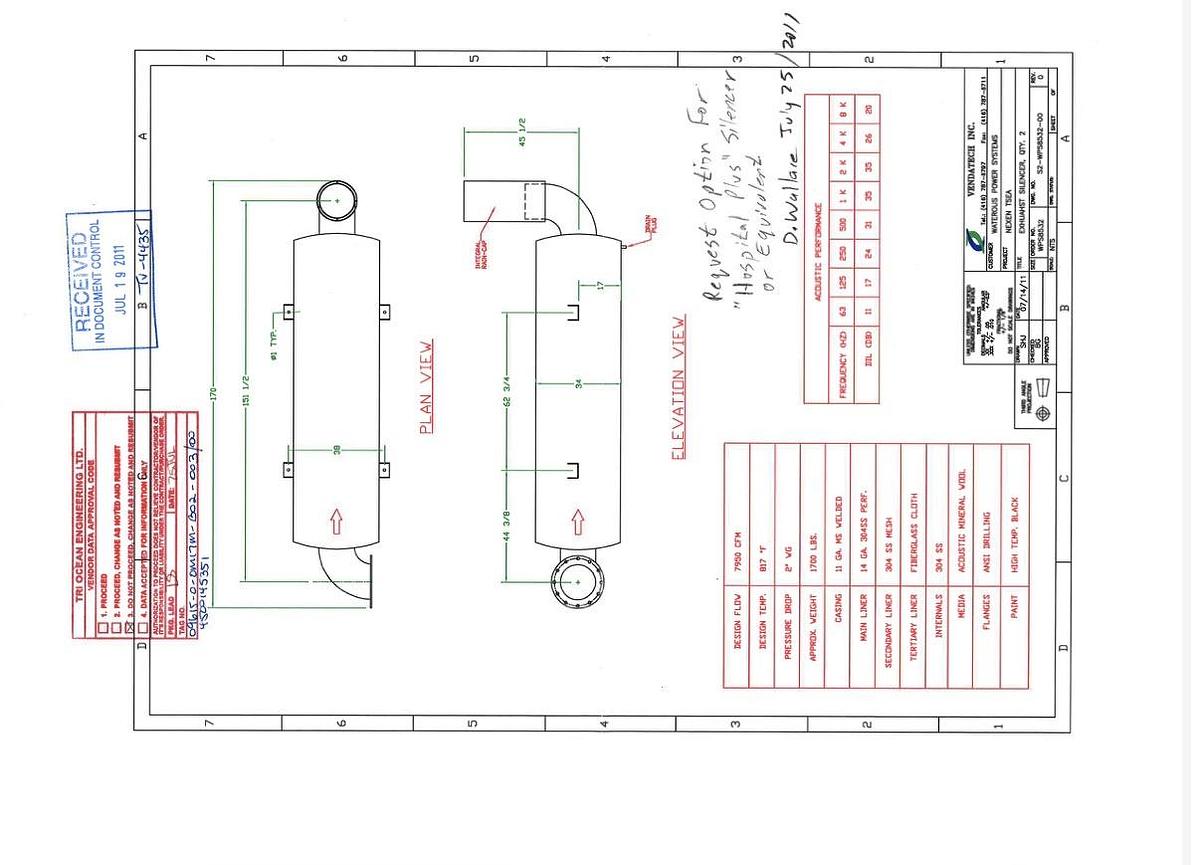

• Exhaust silencer

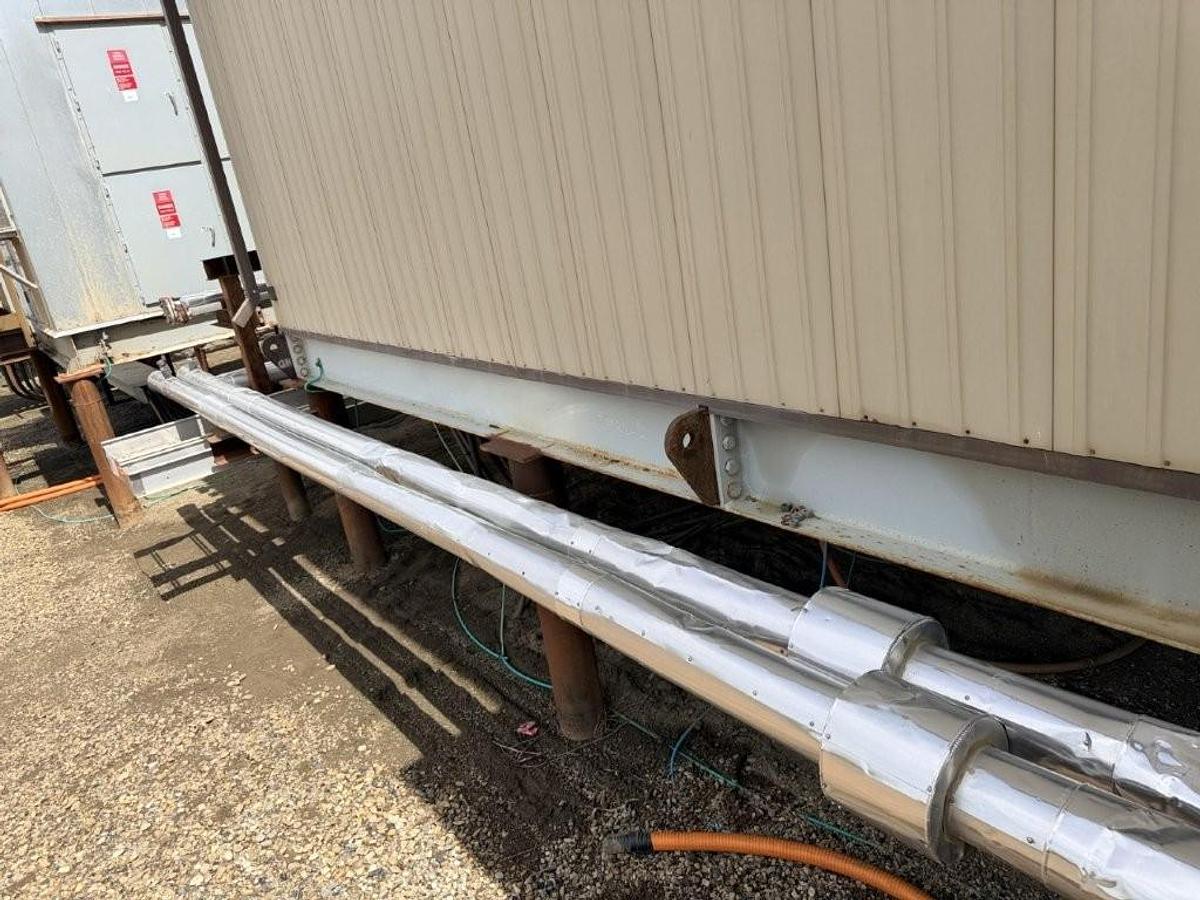

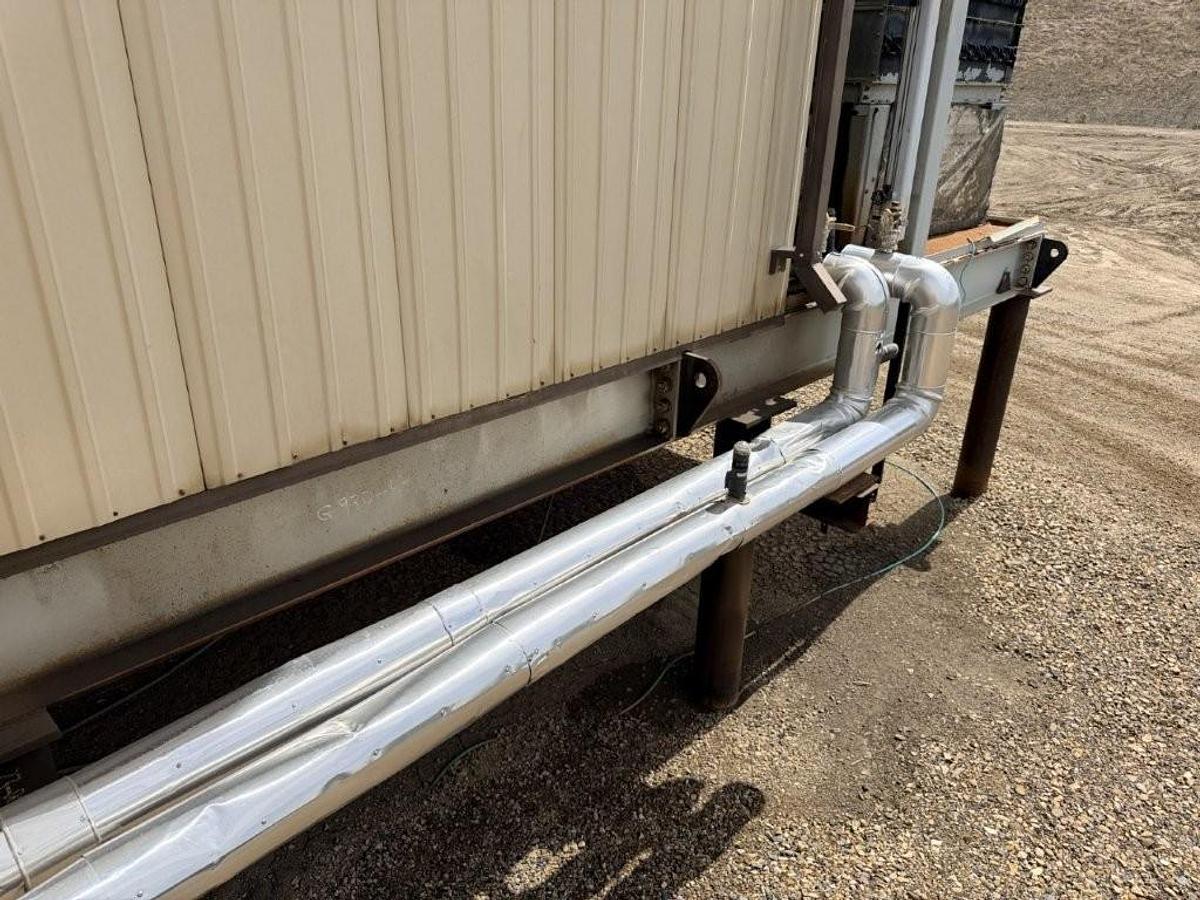

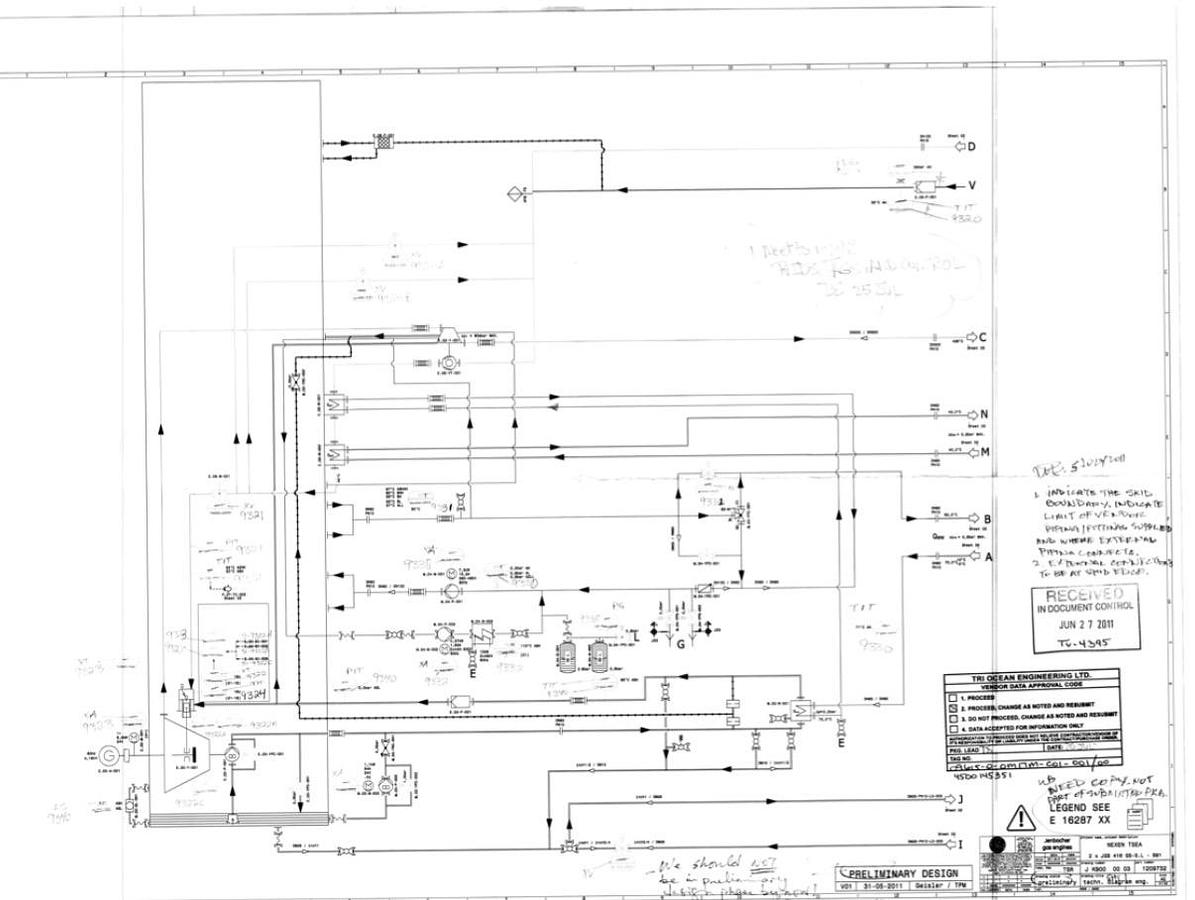

• Fuel gas piping

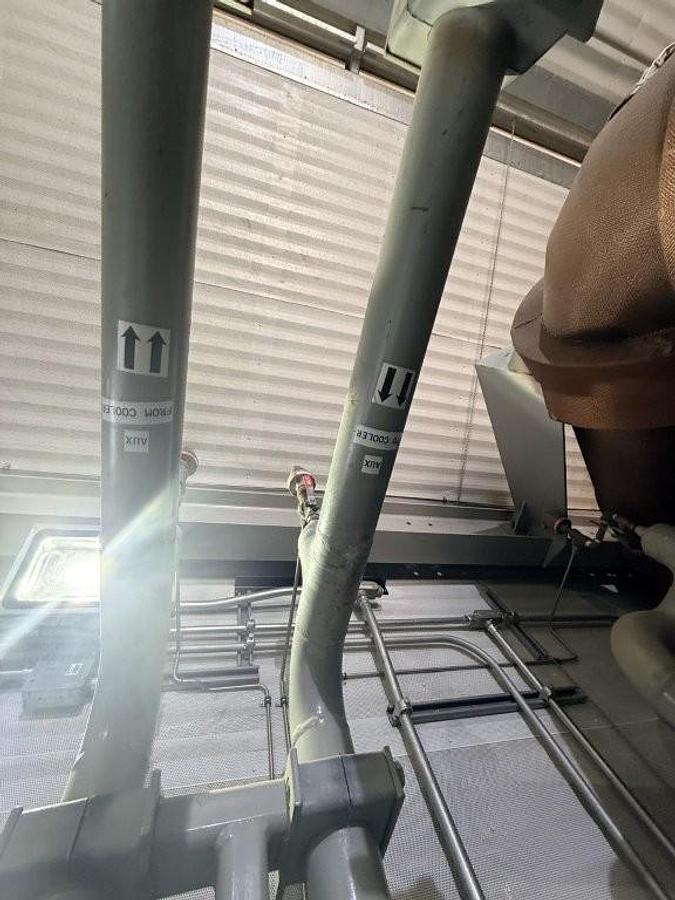

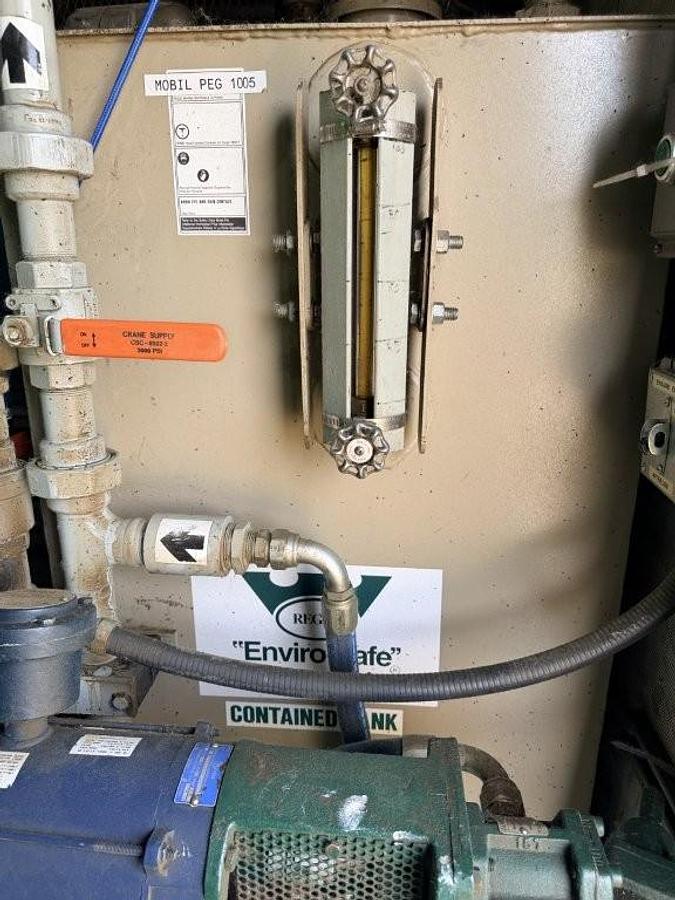

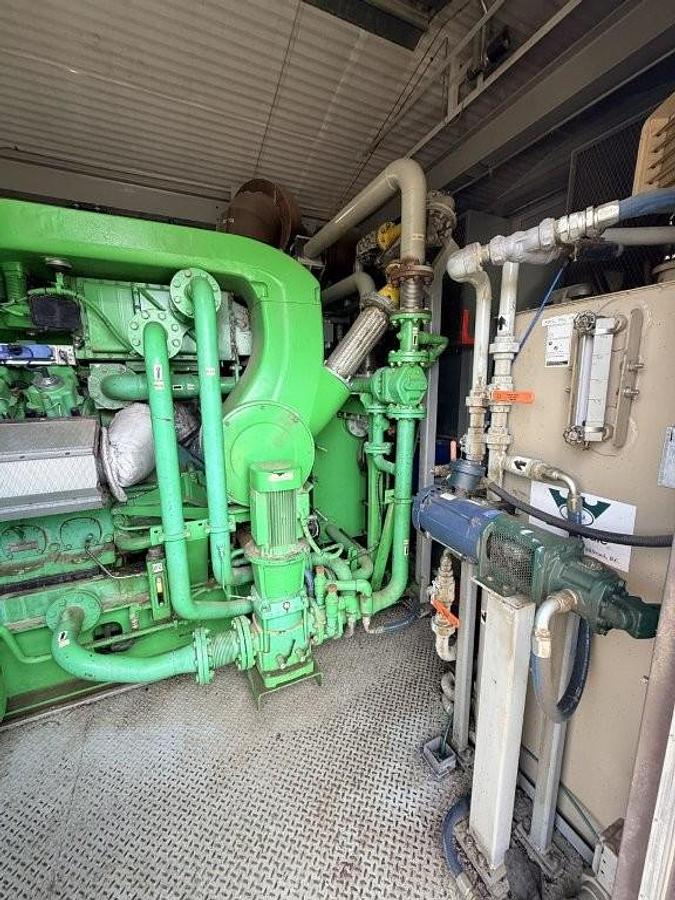

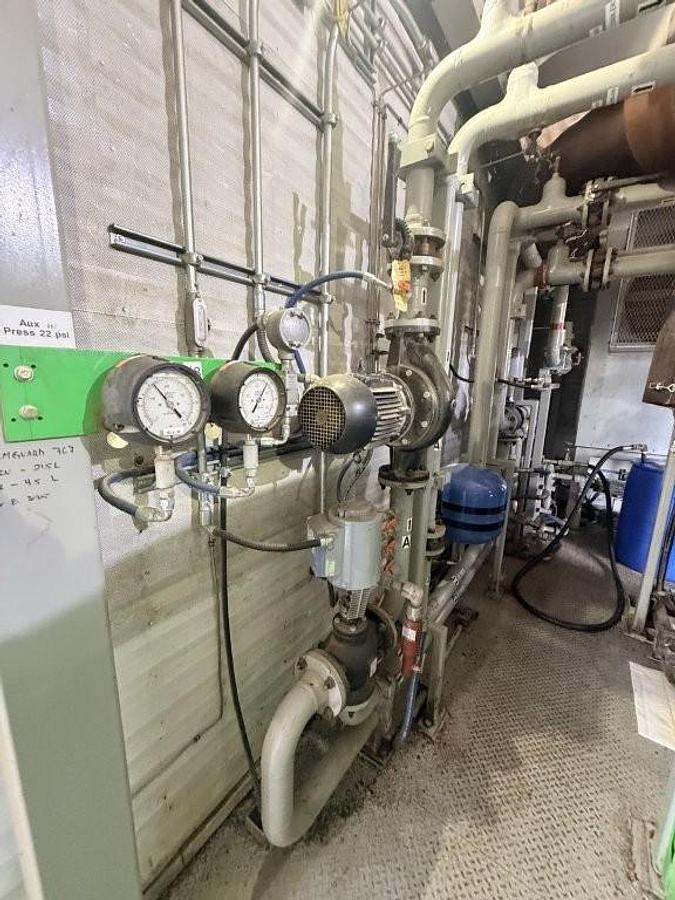

• Cooling and auxiliary systems

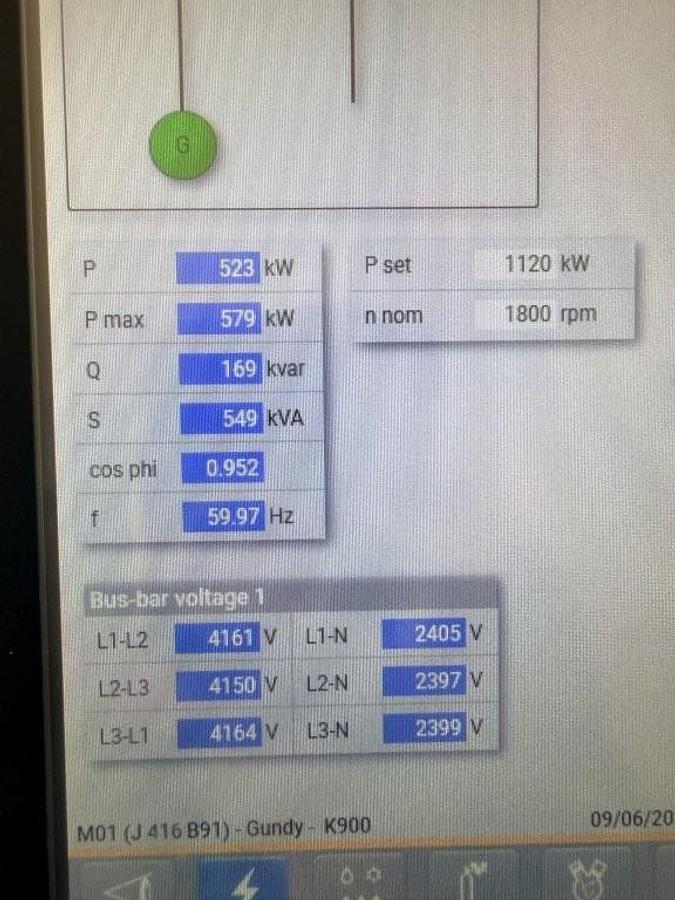

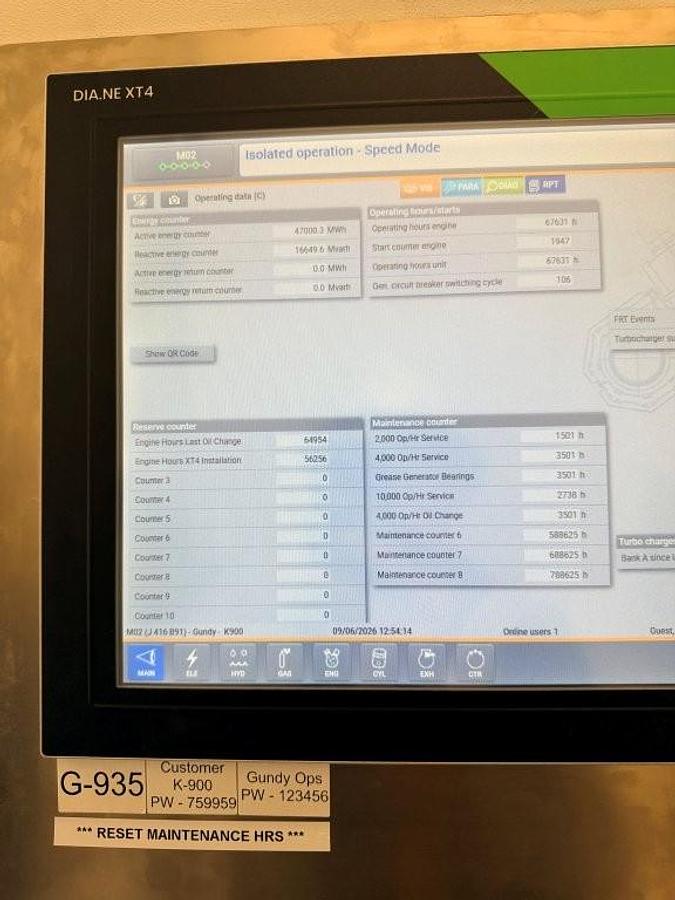

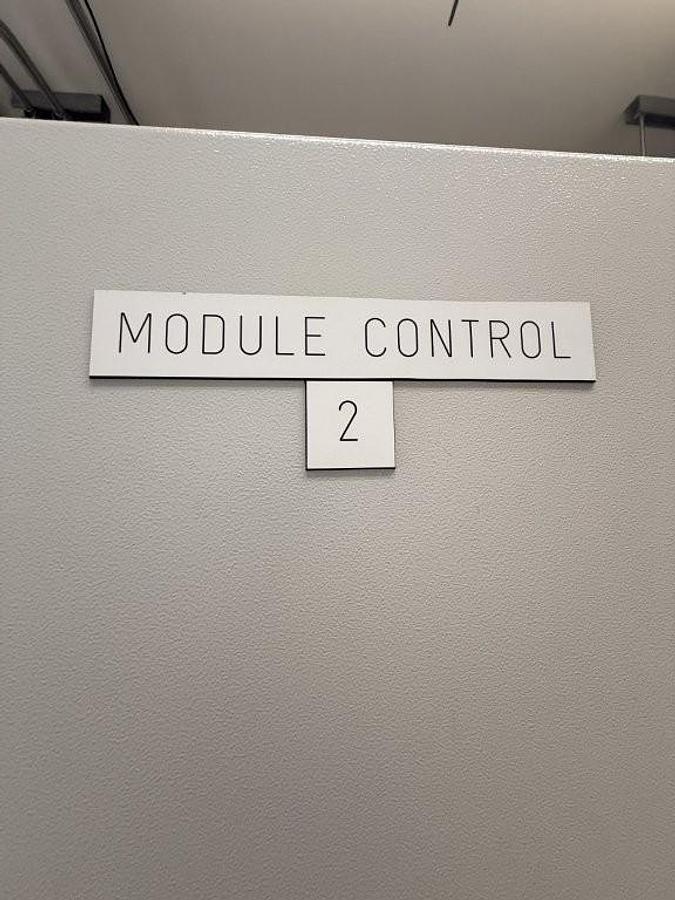

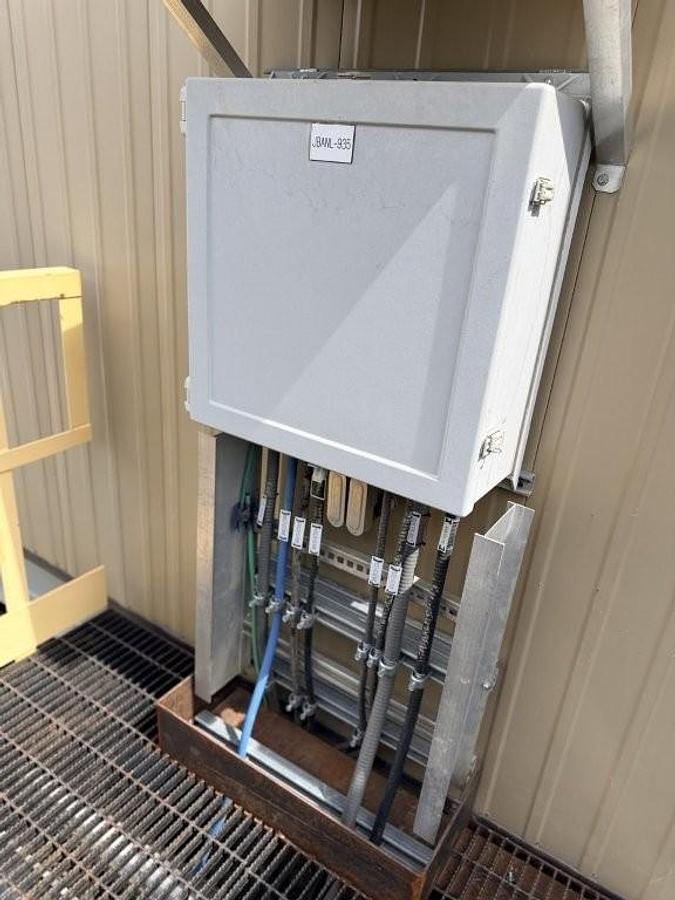

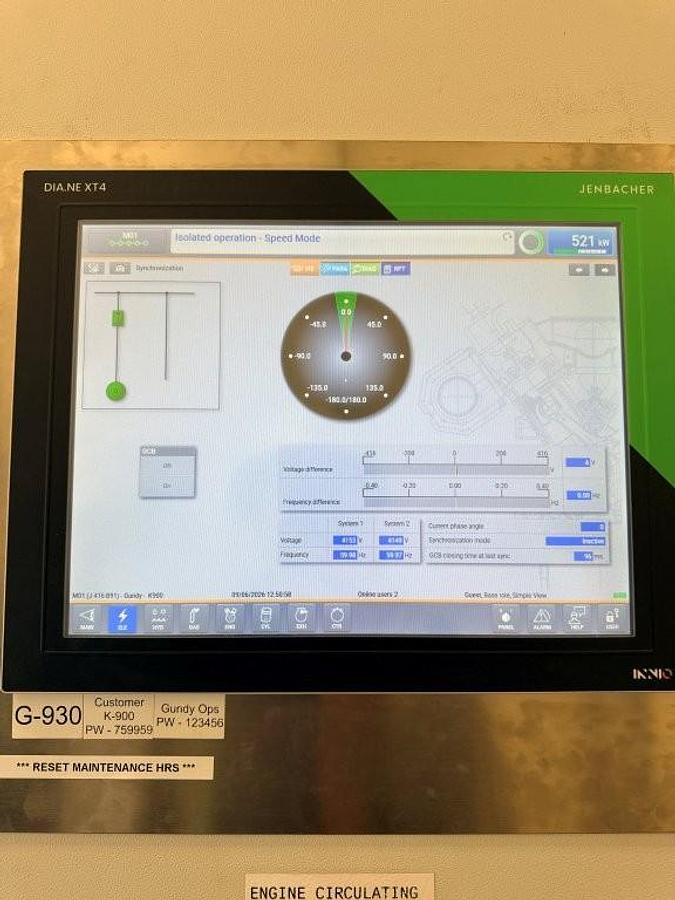

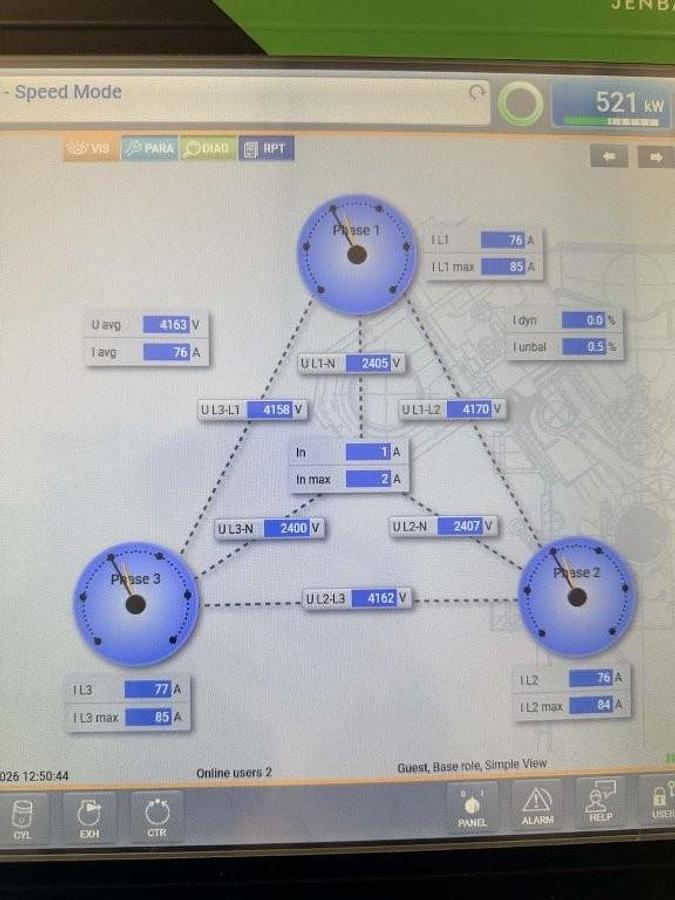

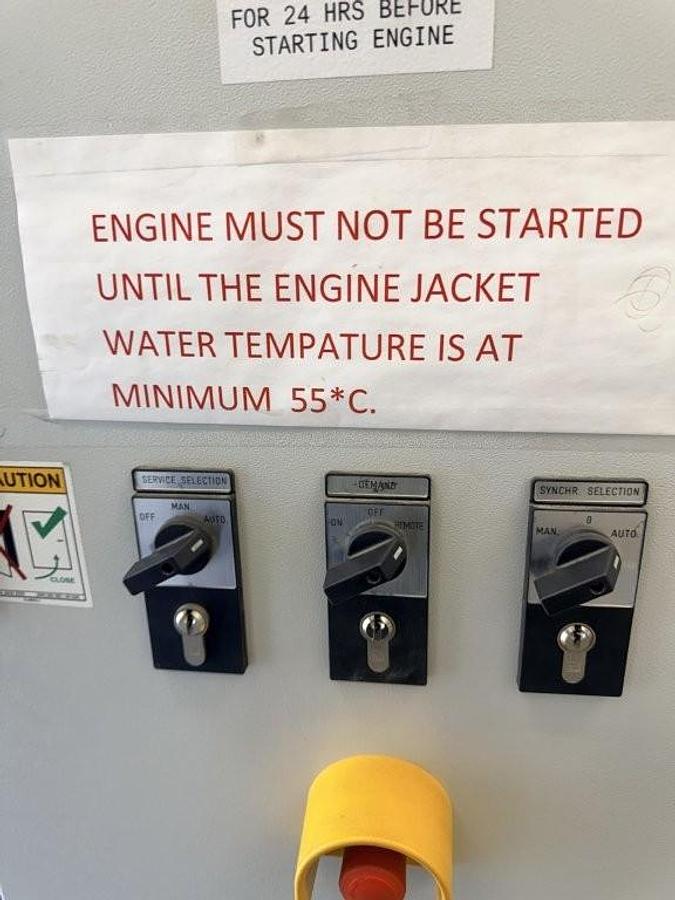

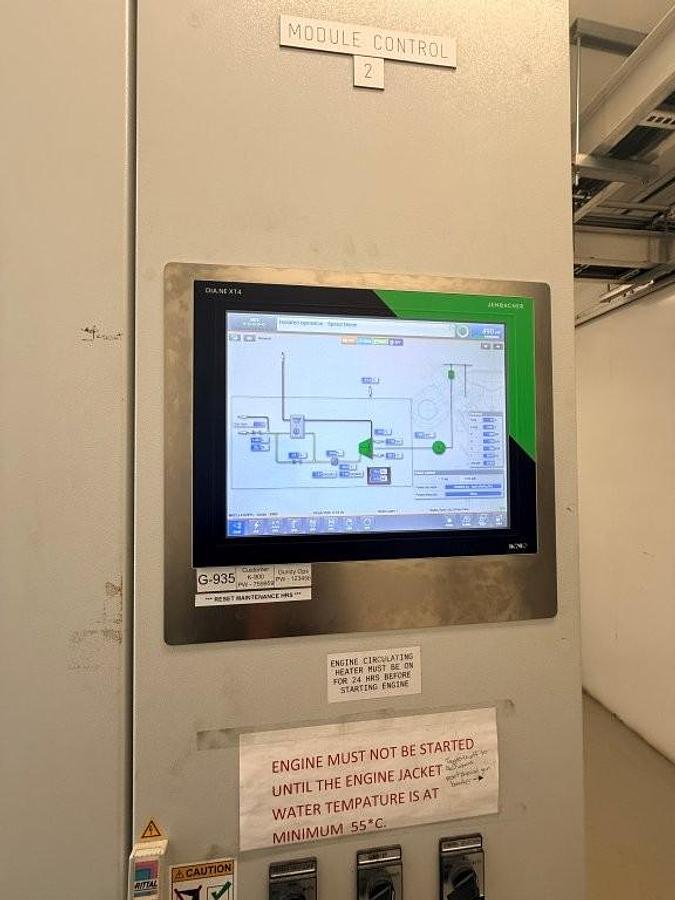

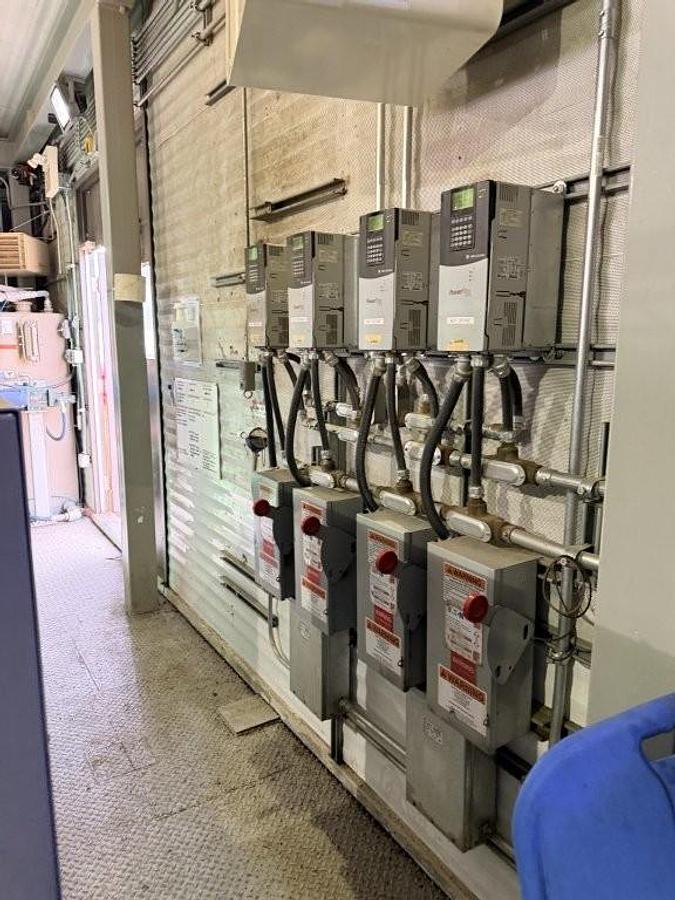

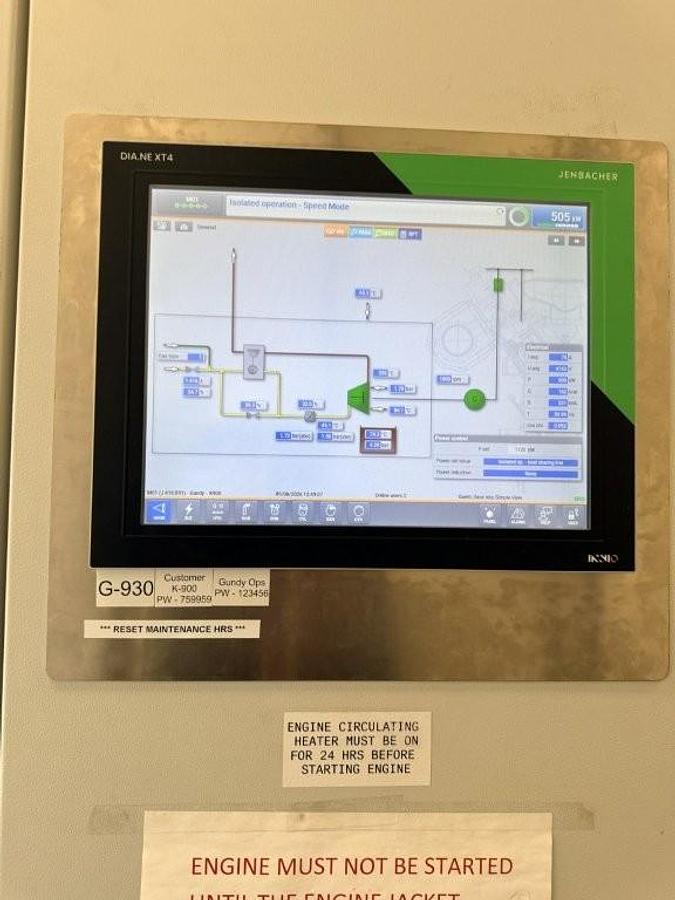

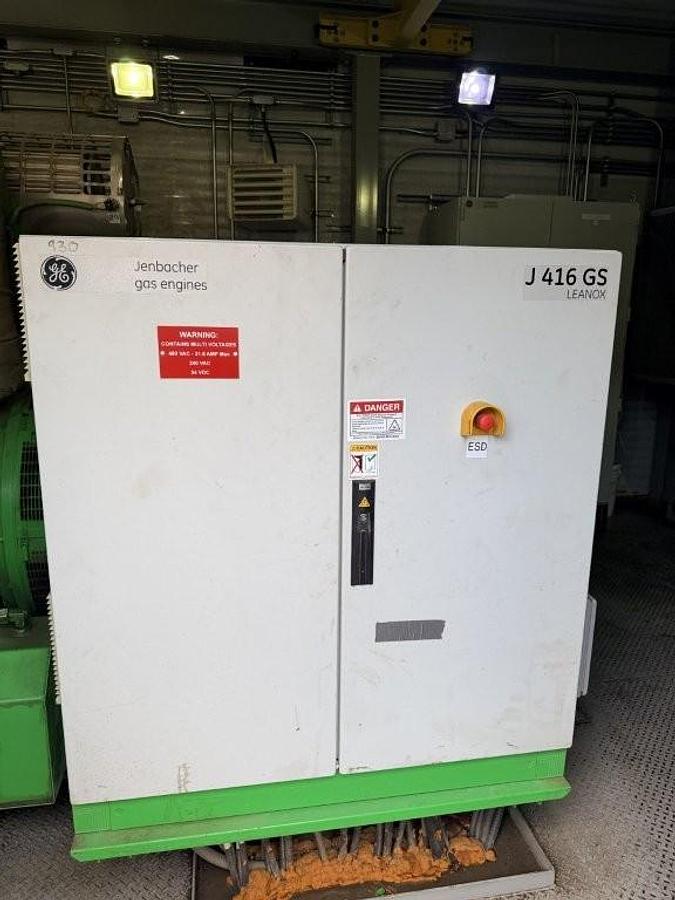

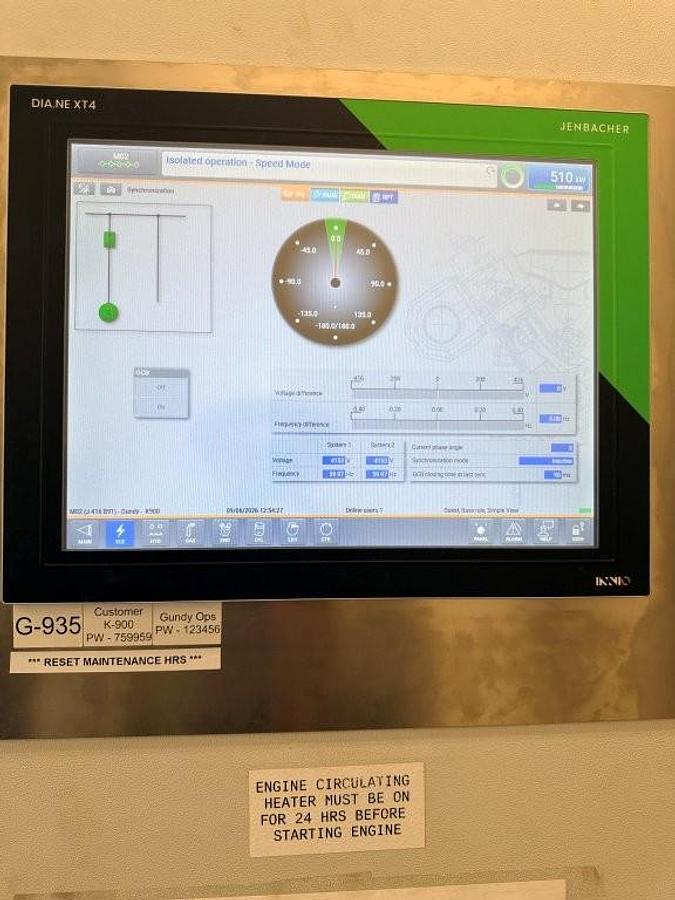

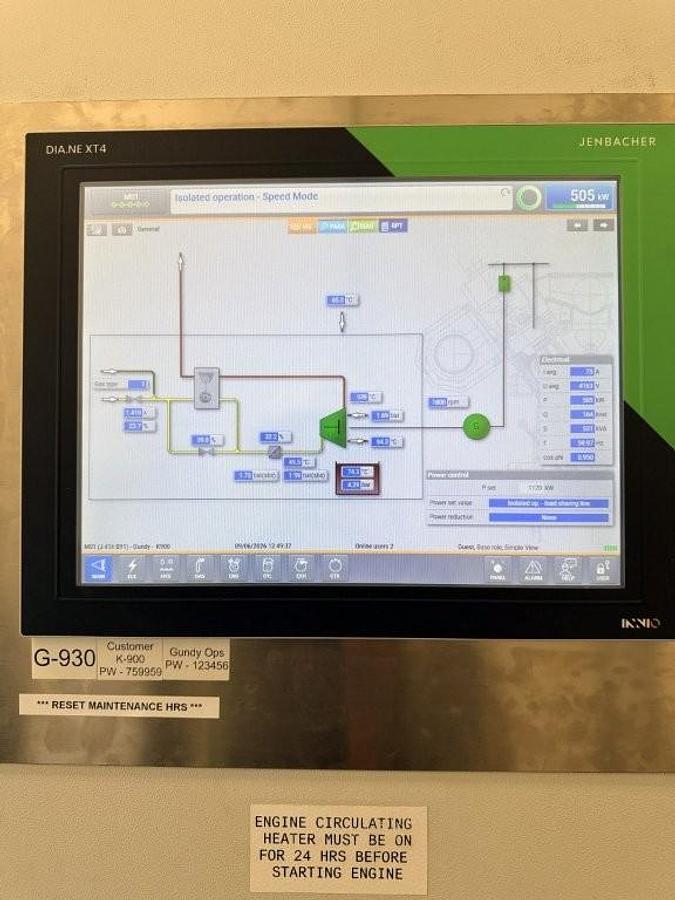

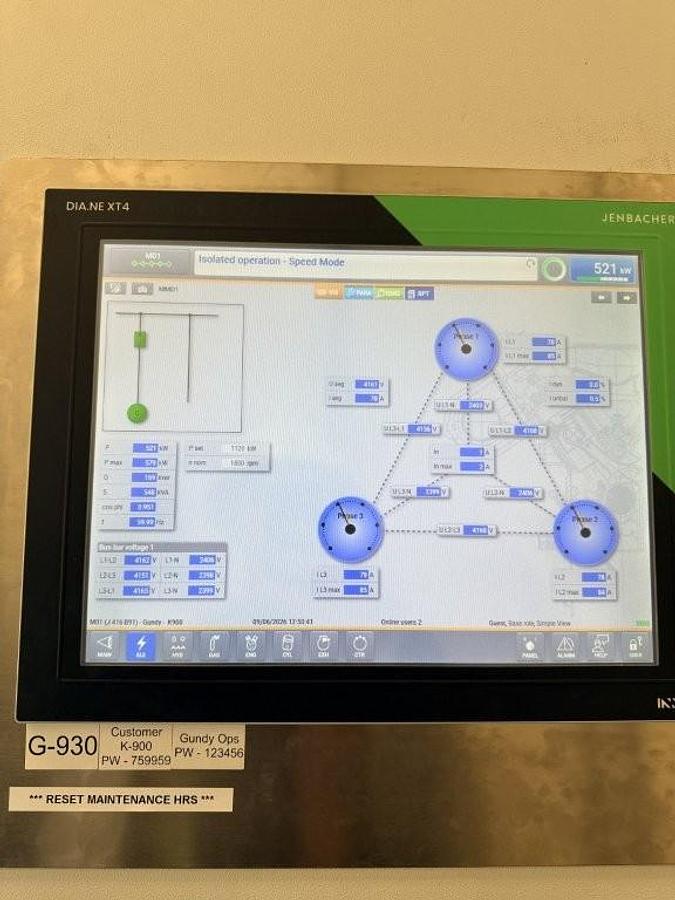

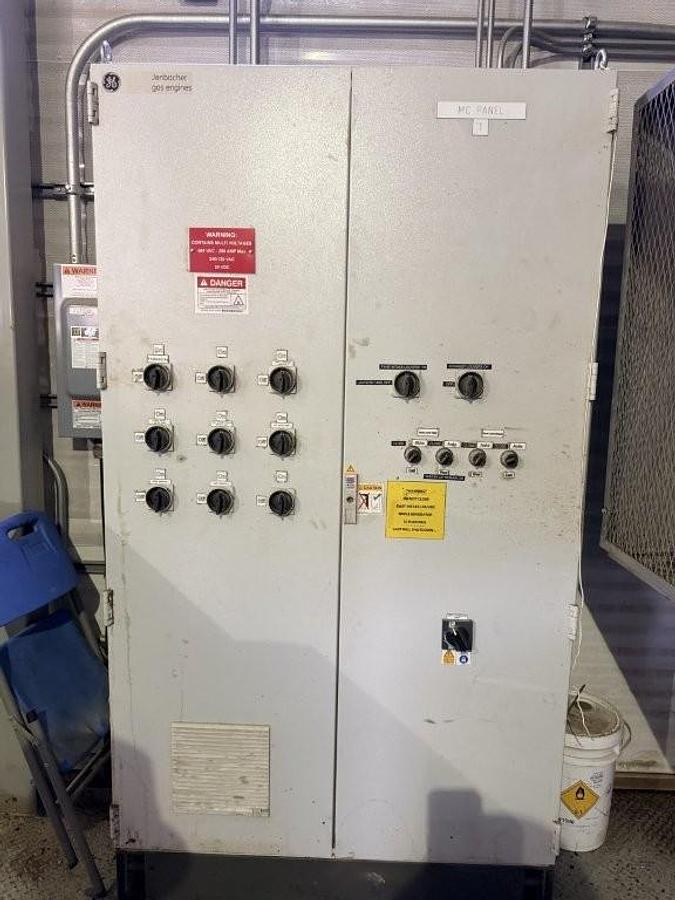

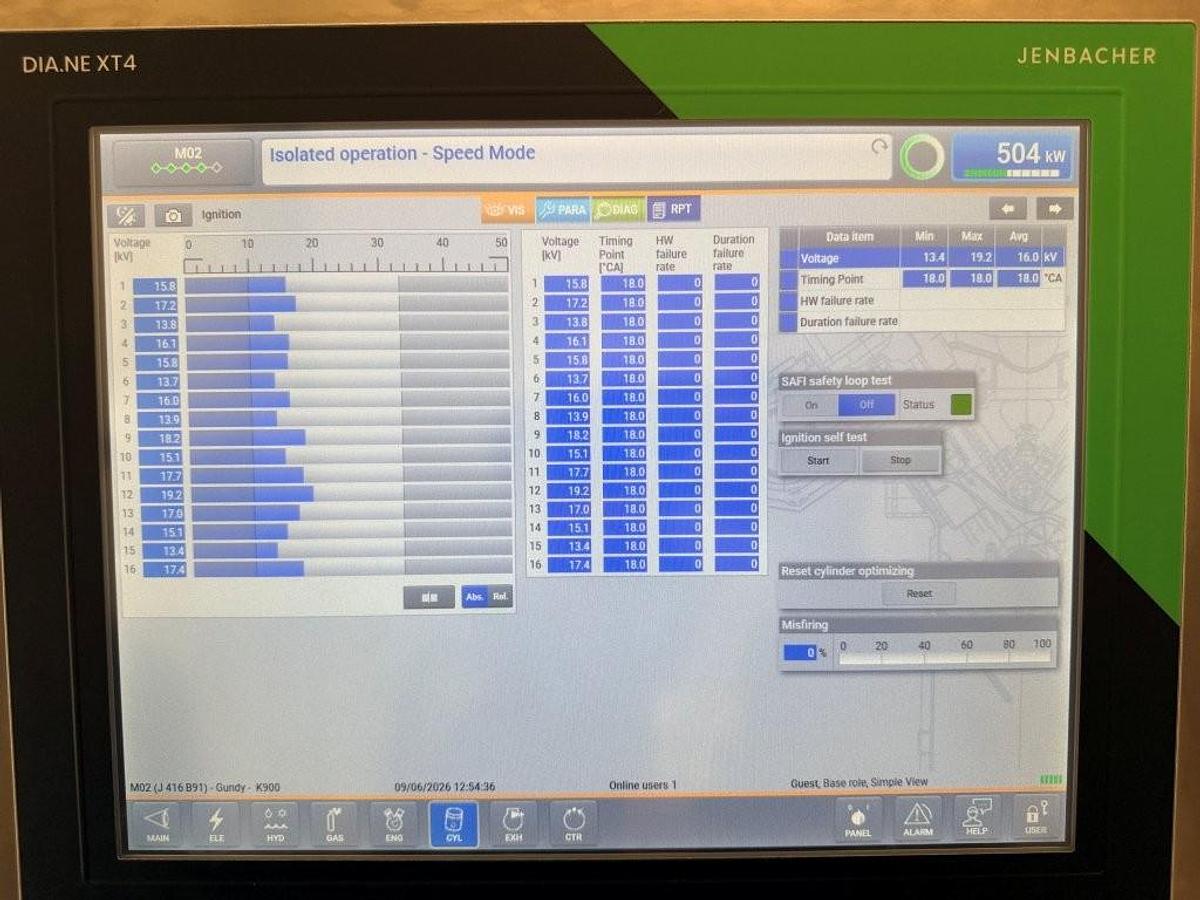

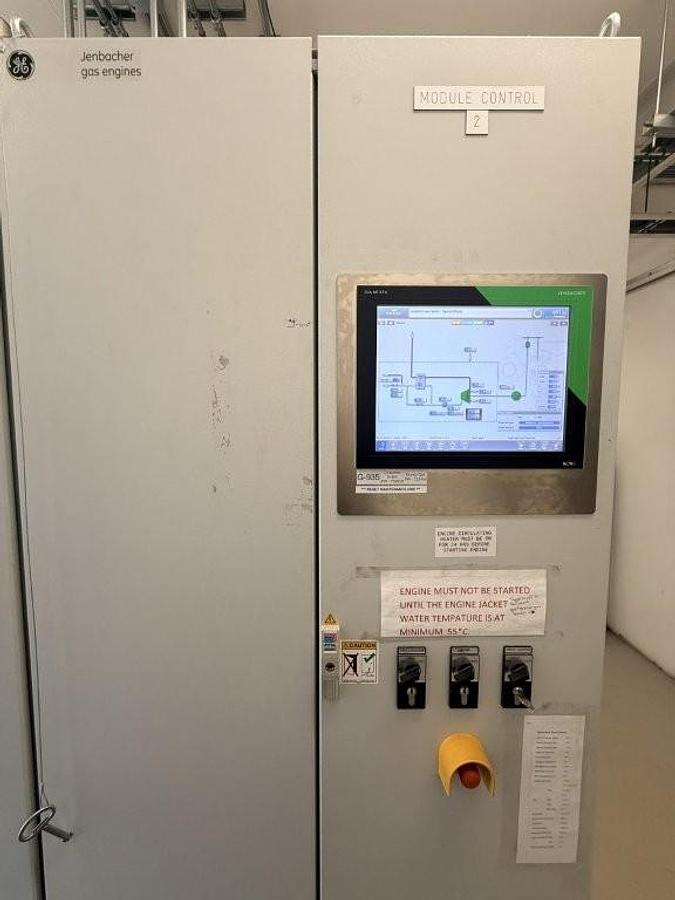

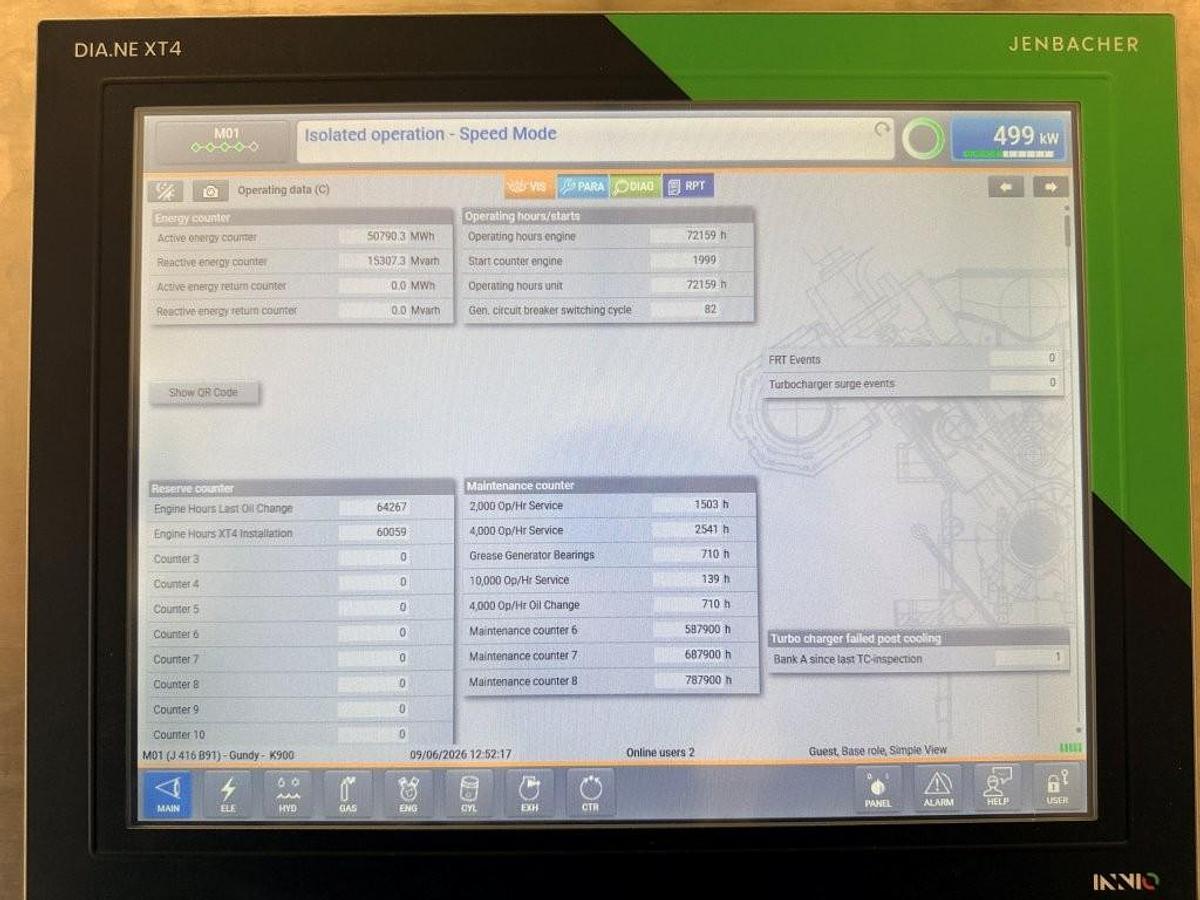

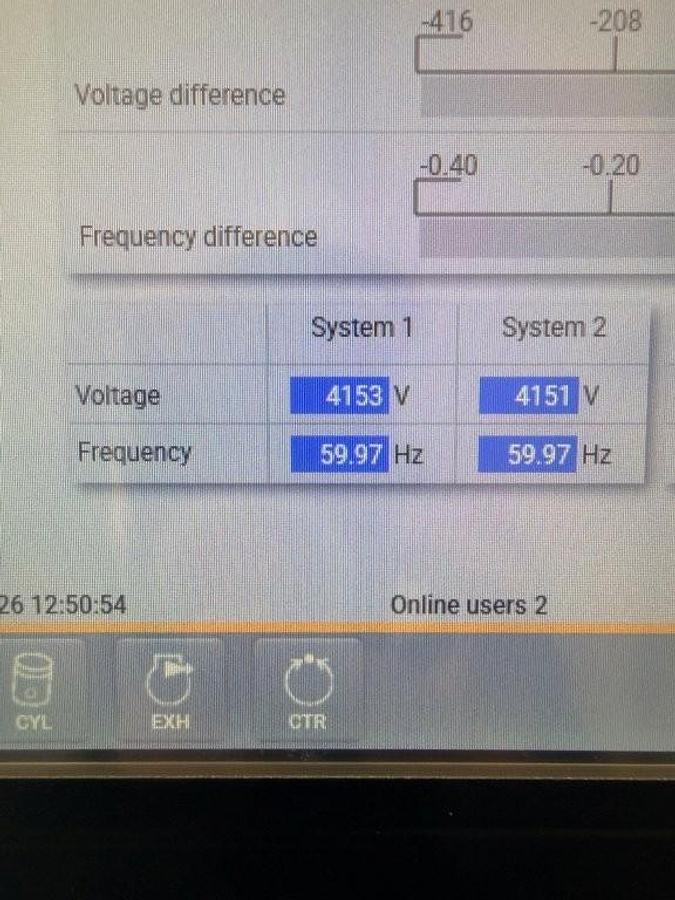

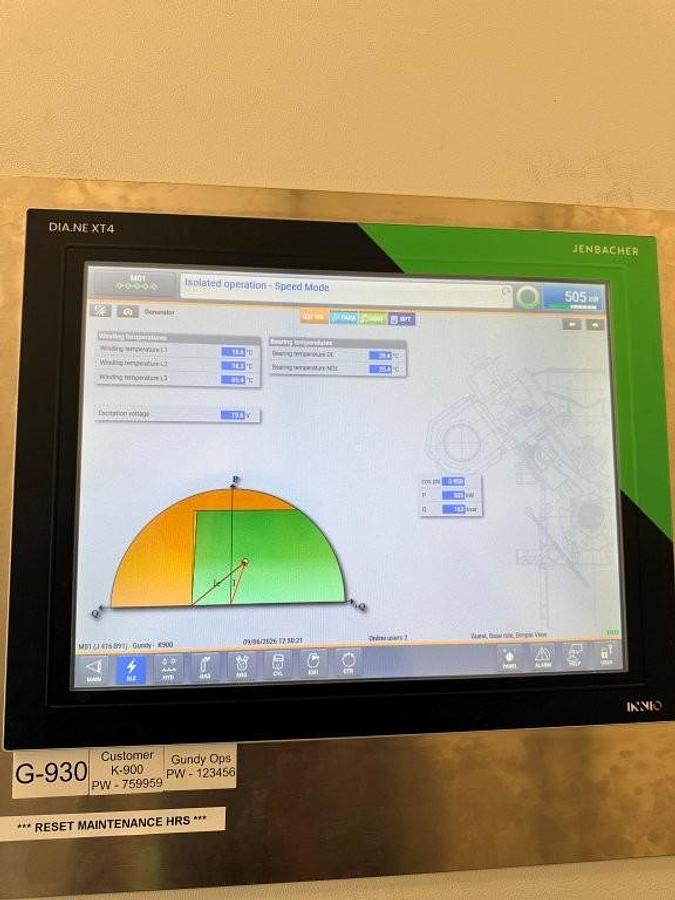

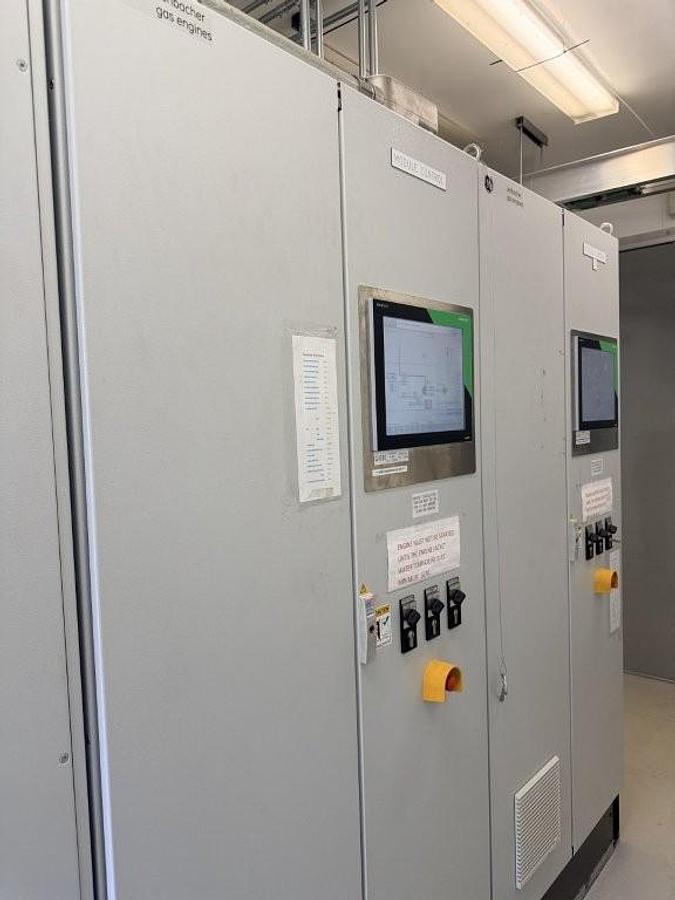

• Electrical and control systems

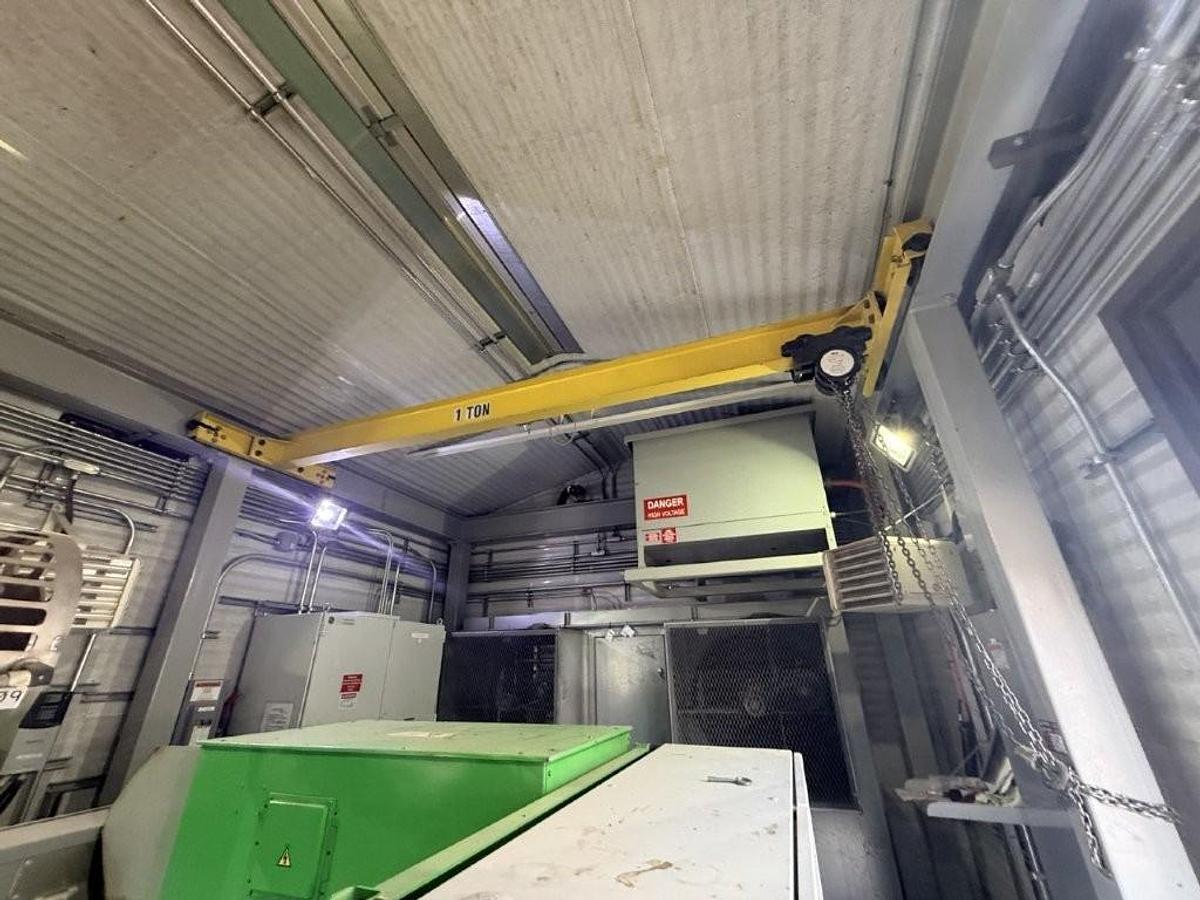

• Structural skid and lifting provisions

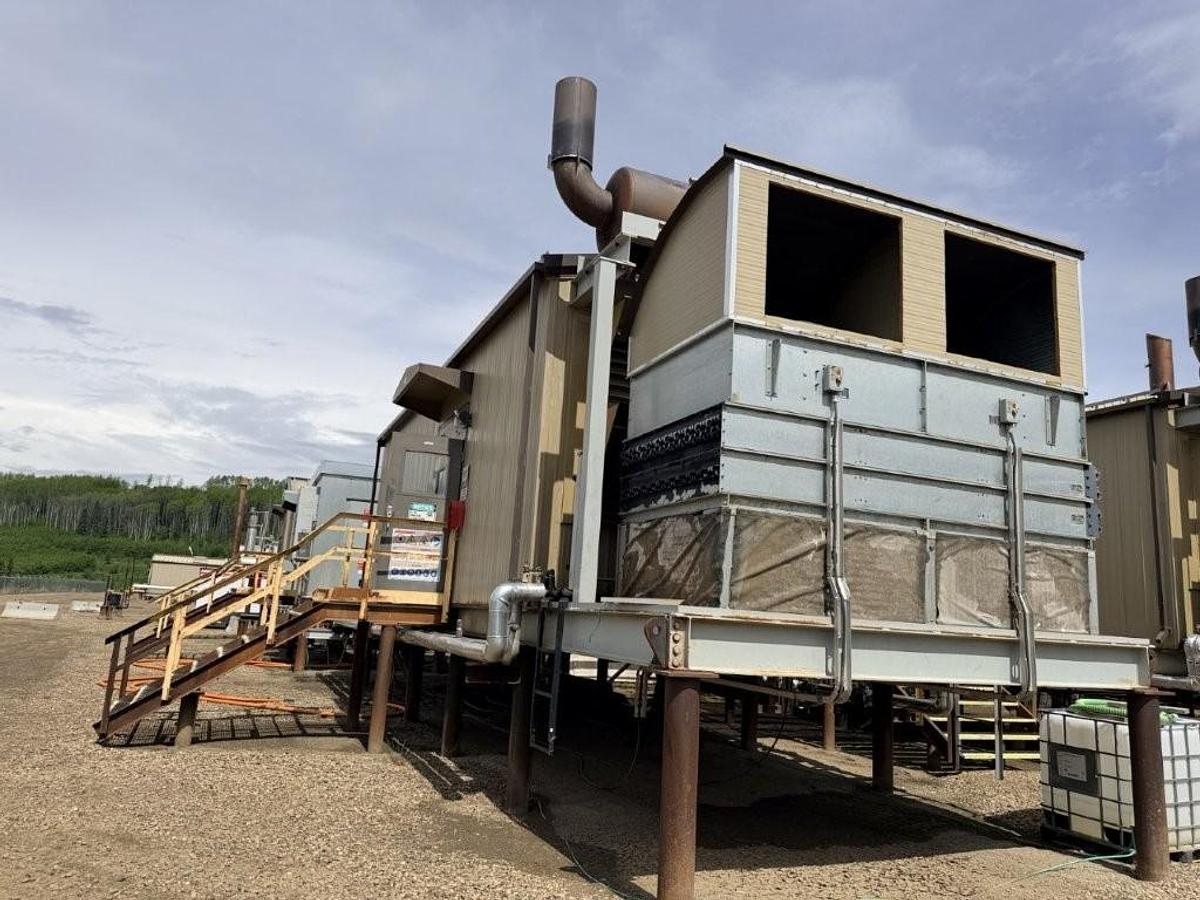

Building Specifications

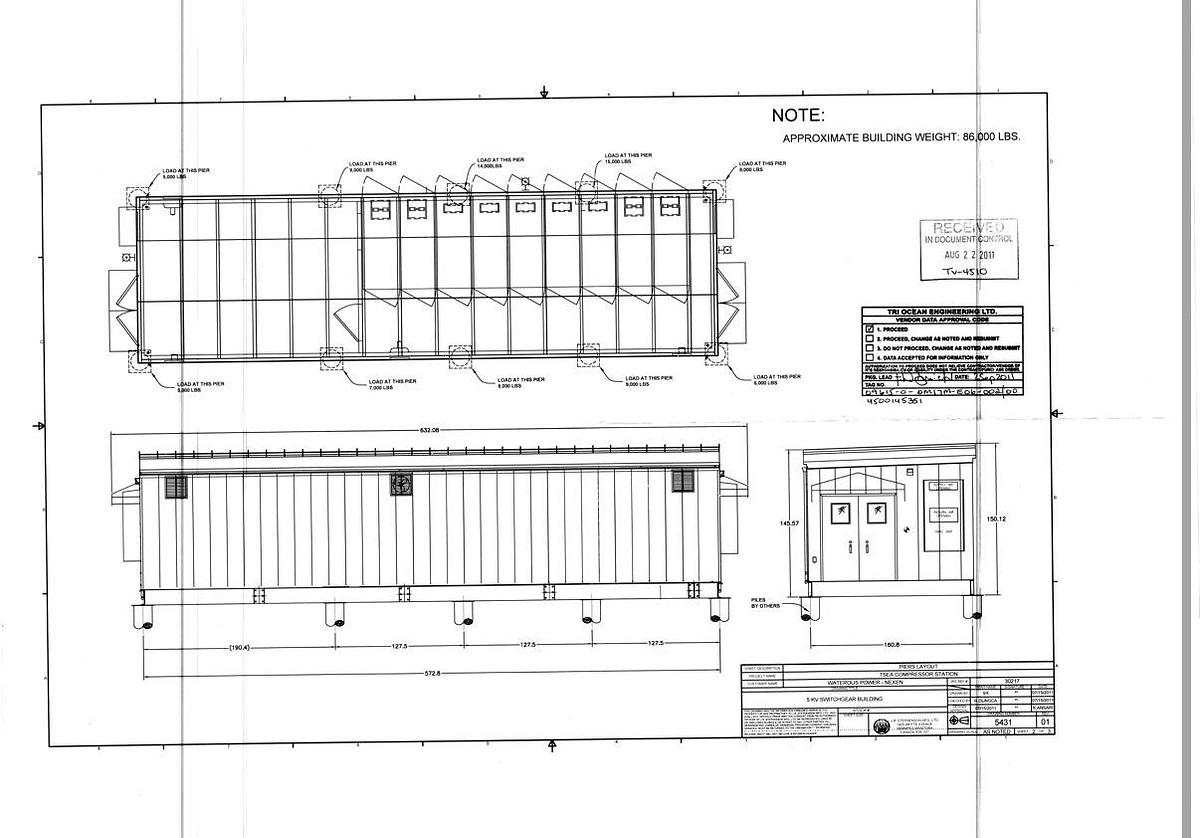

• Approximate Building Weight: 86,000 lbs (40 tons)

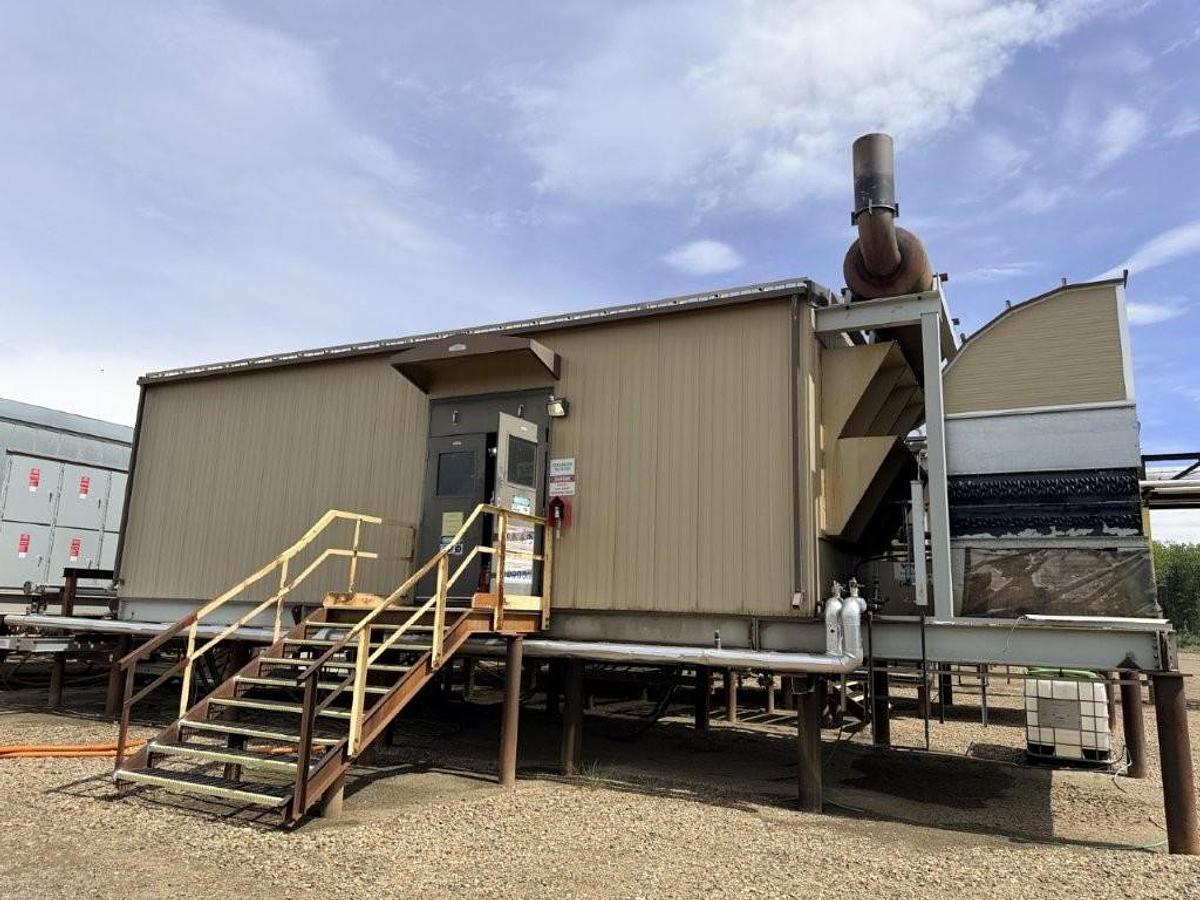

• Weatherproof, transportable enclosure

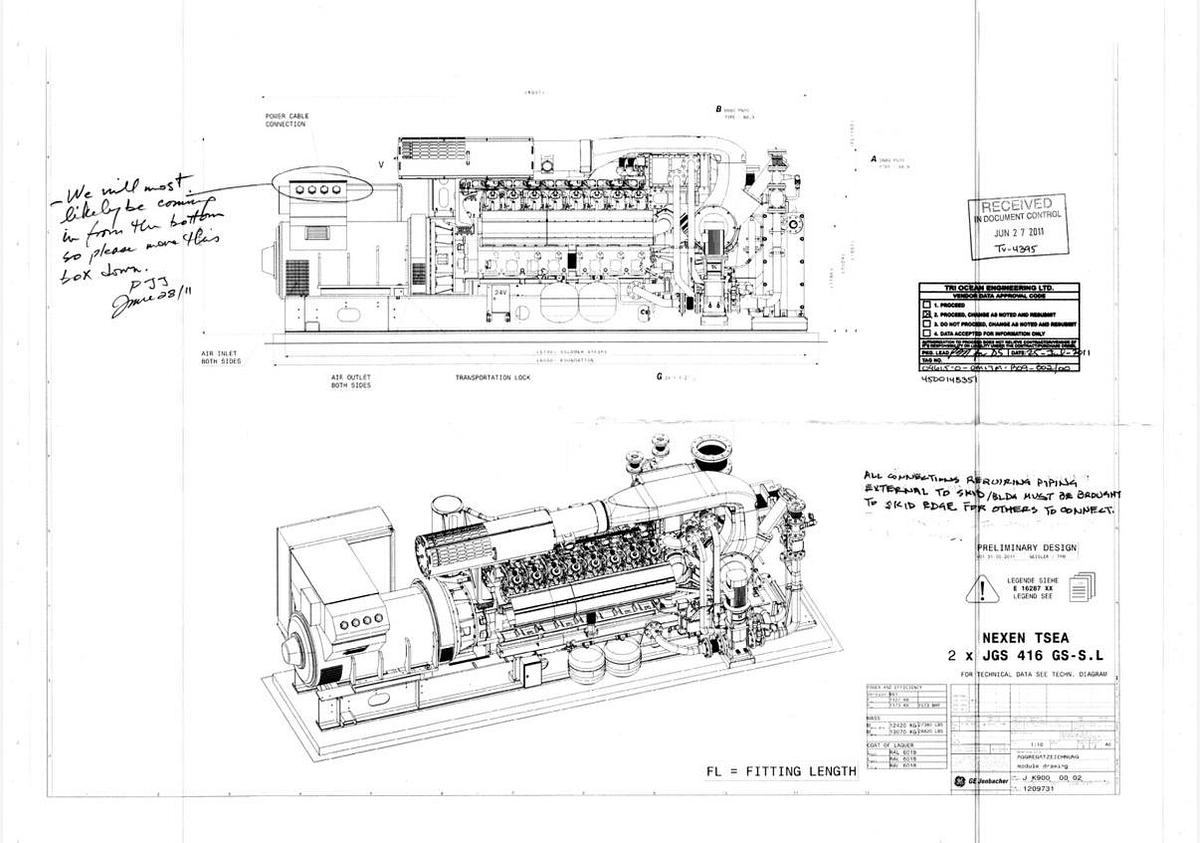

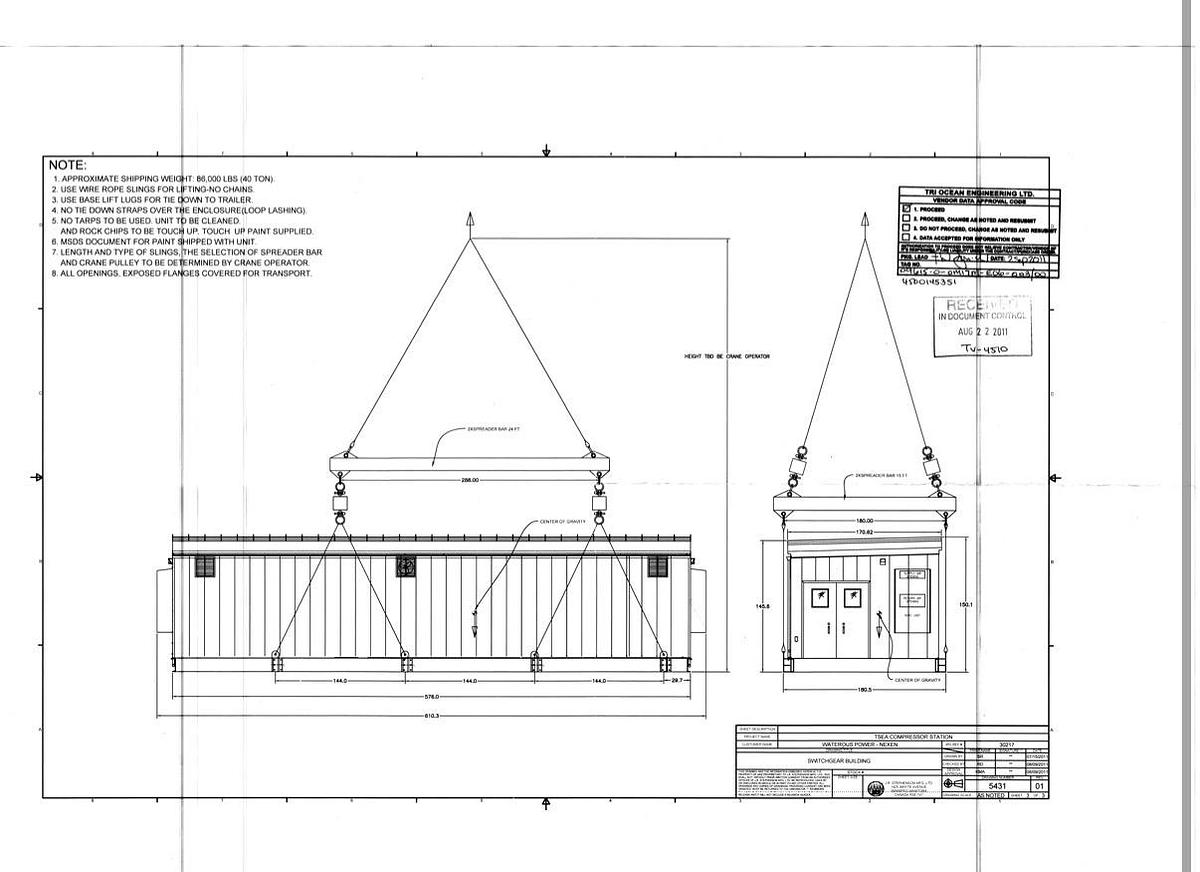

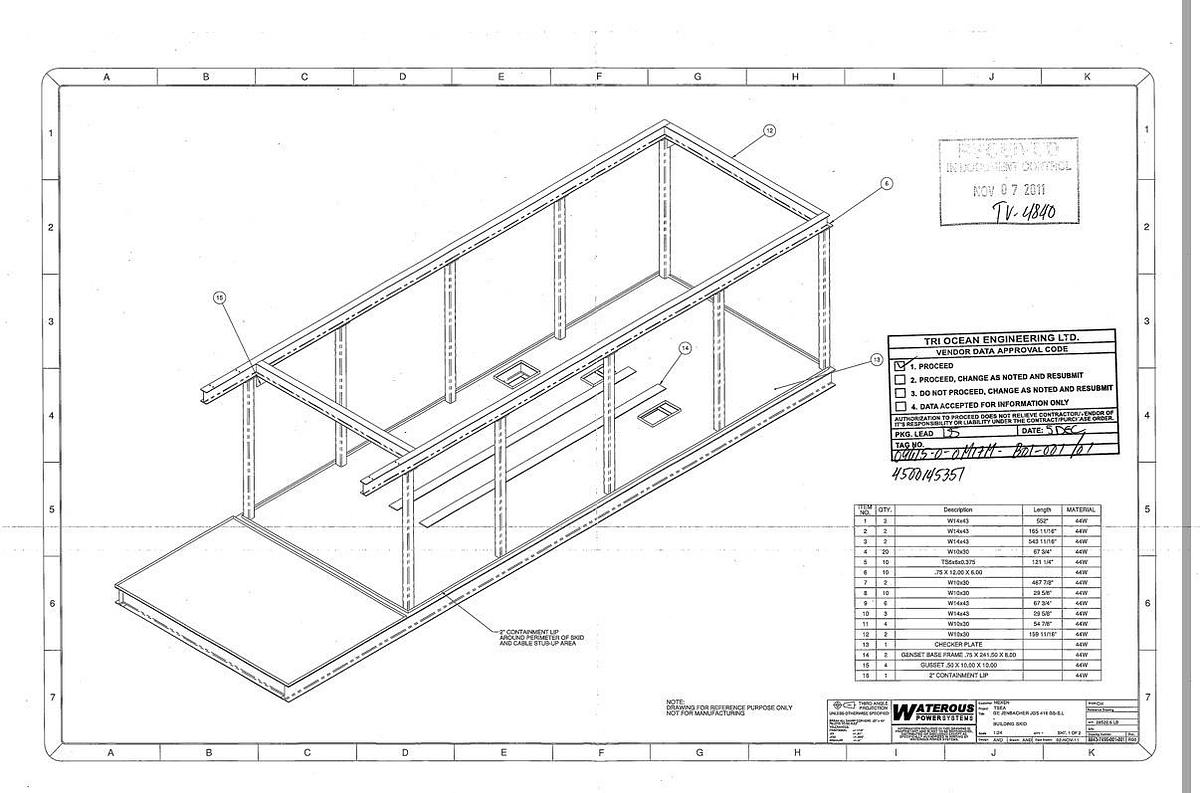

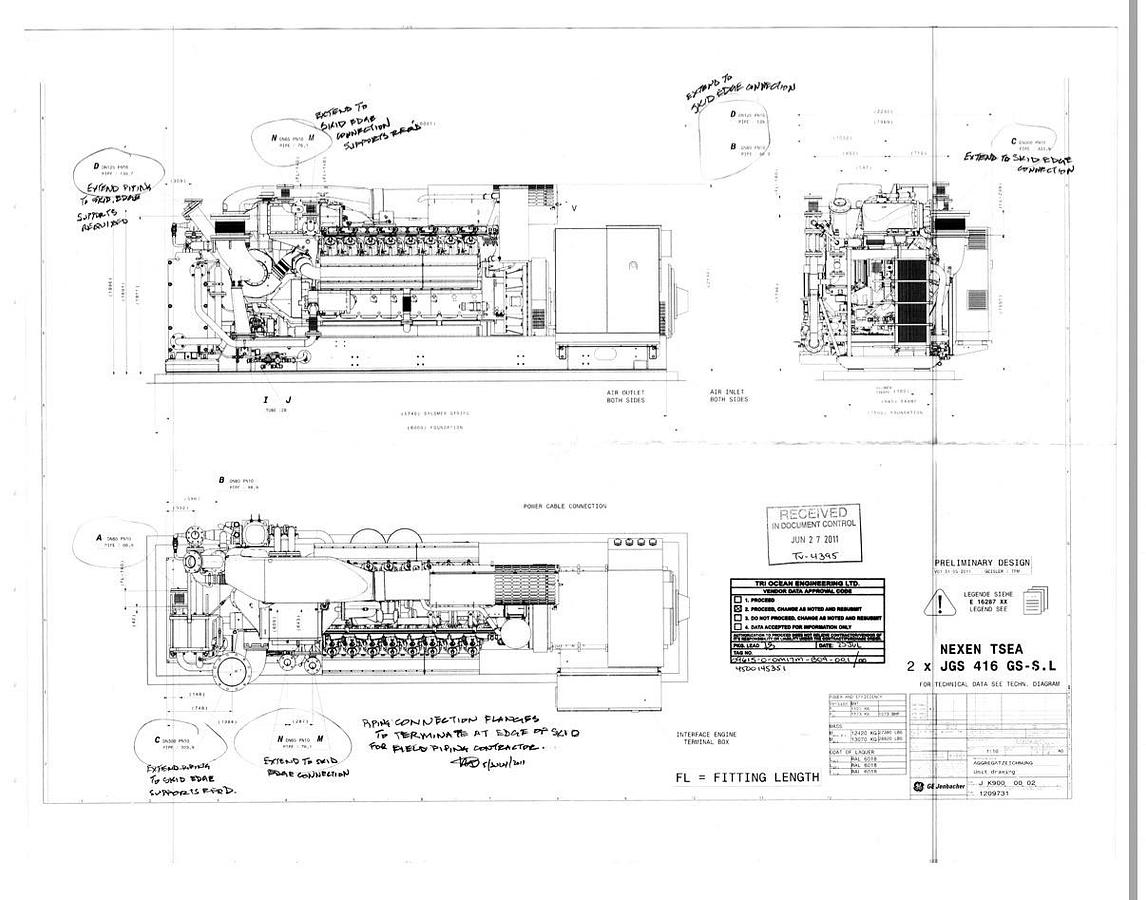

• Designed with lifting points and engineered transportation drawings

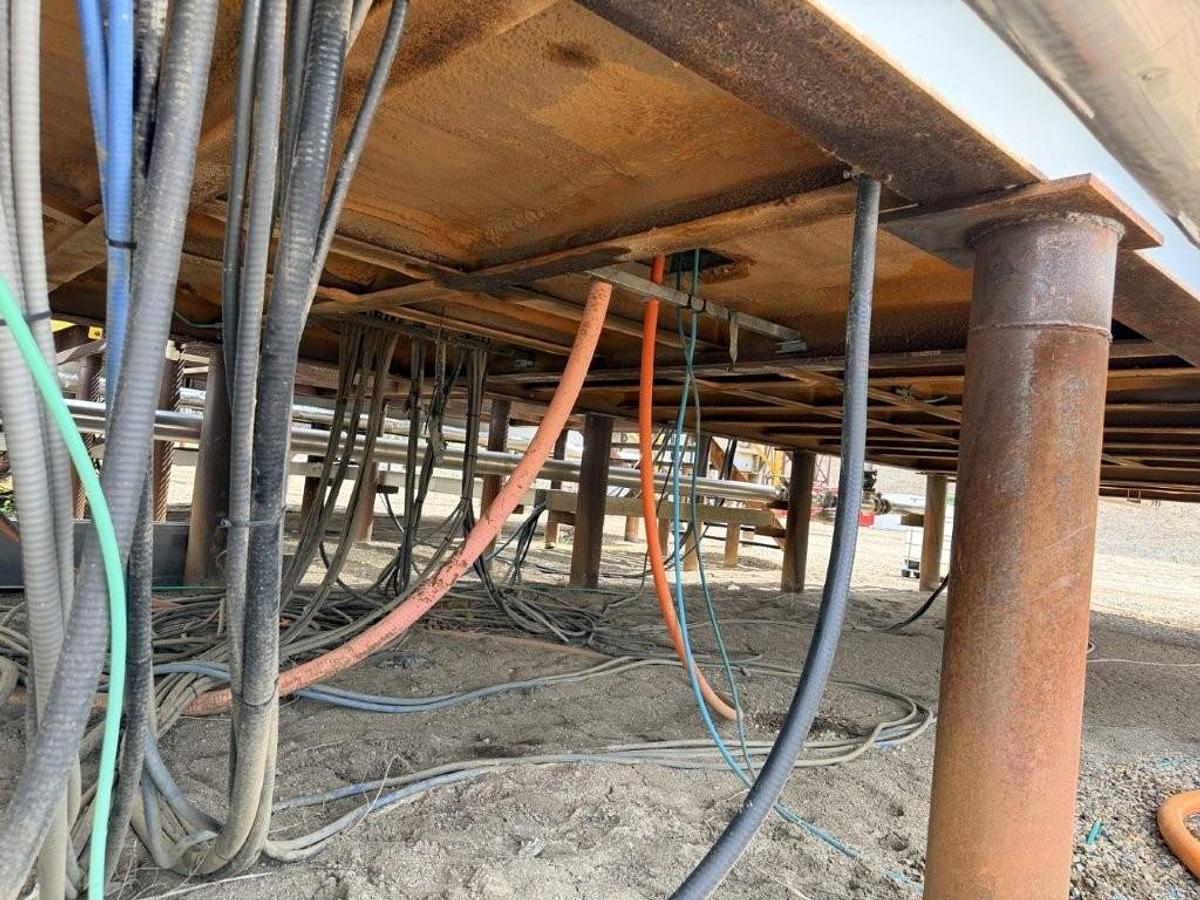

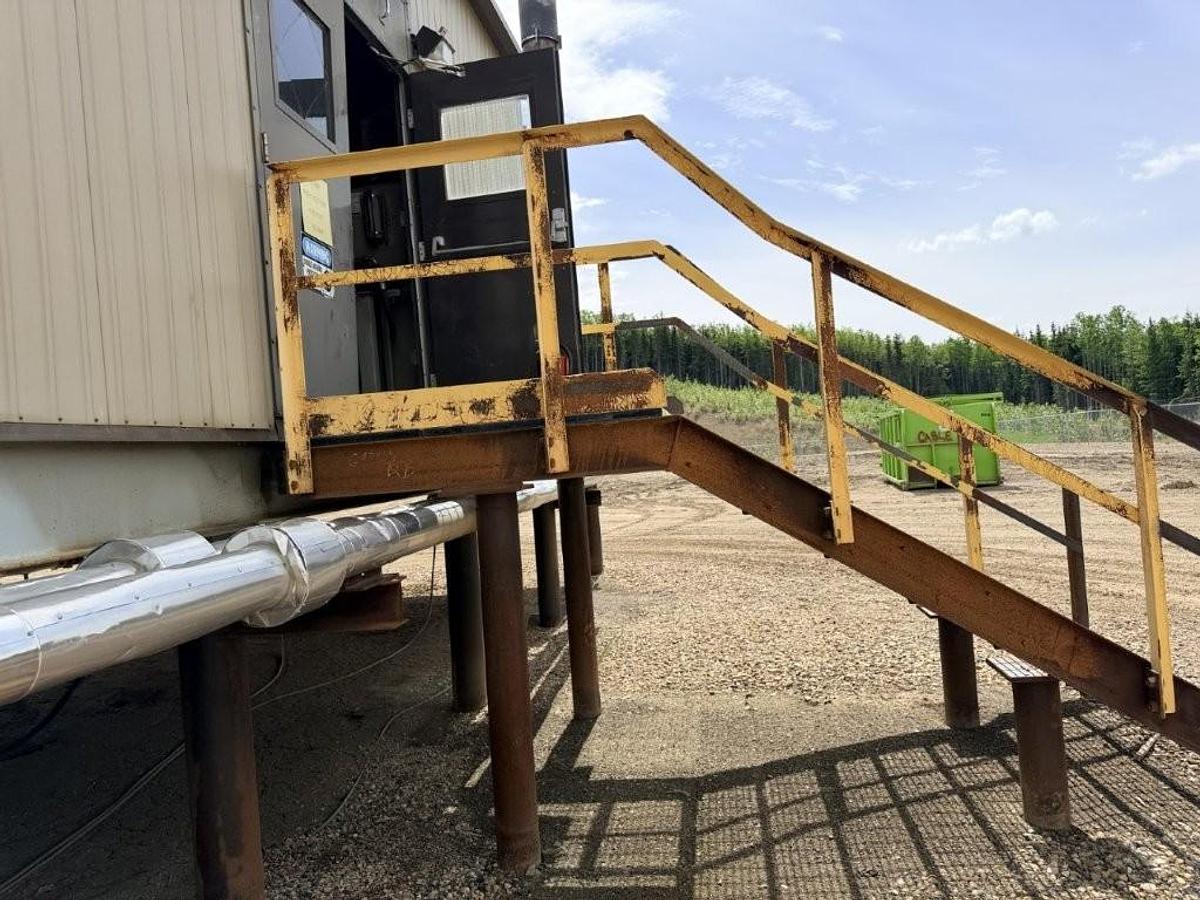

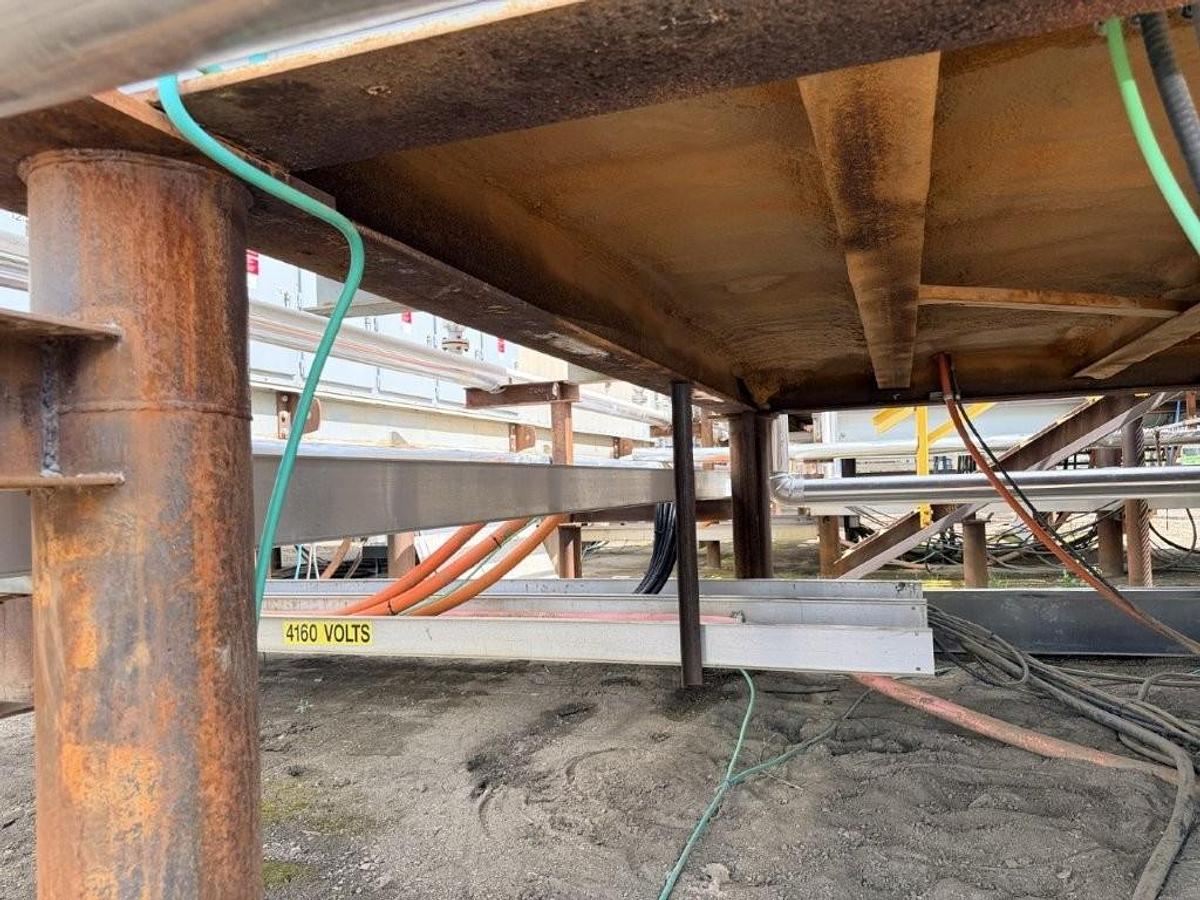

• Includes detailed foundation and pier loading requirements

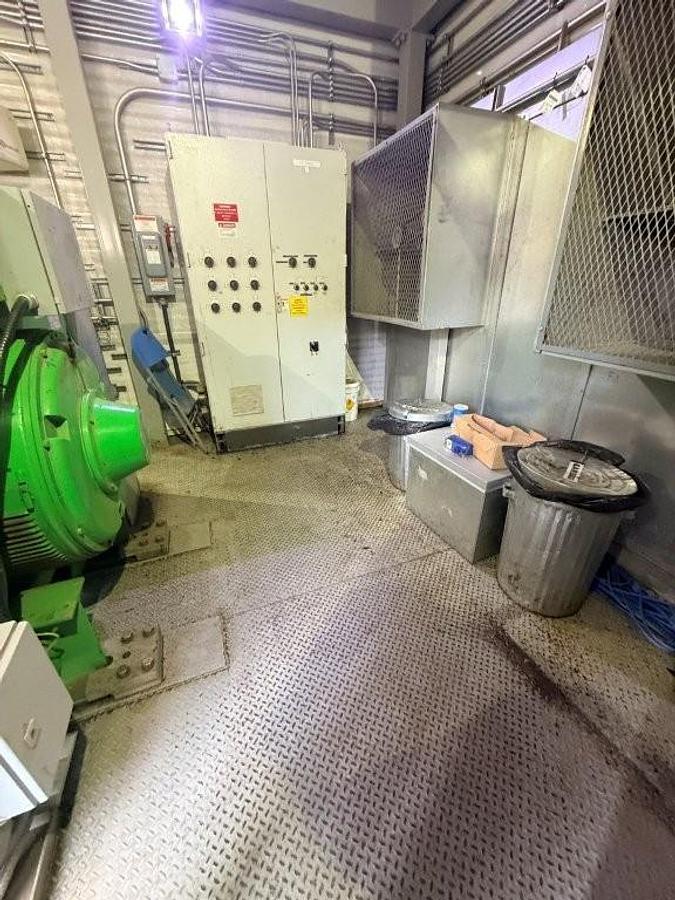

• Generator Room Information
• Building Dimensions:
• Length: 10.8 m
• Width: 4.3 m
• Height: 3.4 m
• Room Volume:
• 157.9 m³
• Ventilation Requirements:
• 42,776 CFM inlet airflow
• 39,483 CFM discharge airflow

These are complete engineered generator packages and will come with all major engineering information required for transportation, installation, and evaluation.

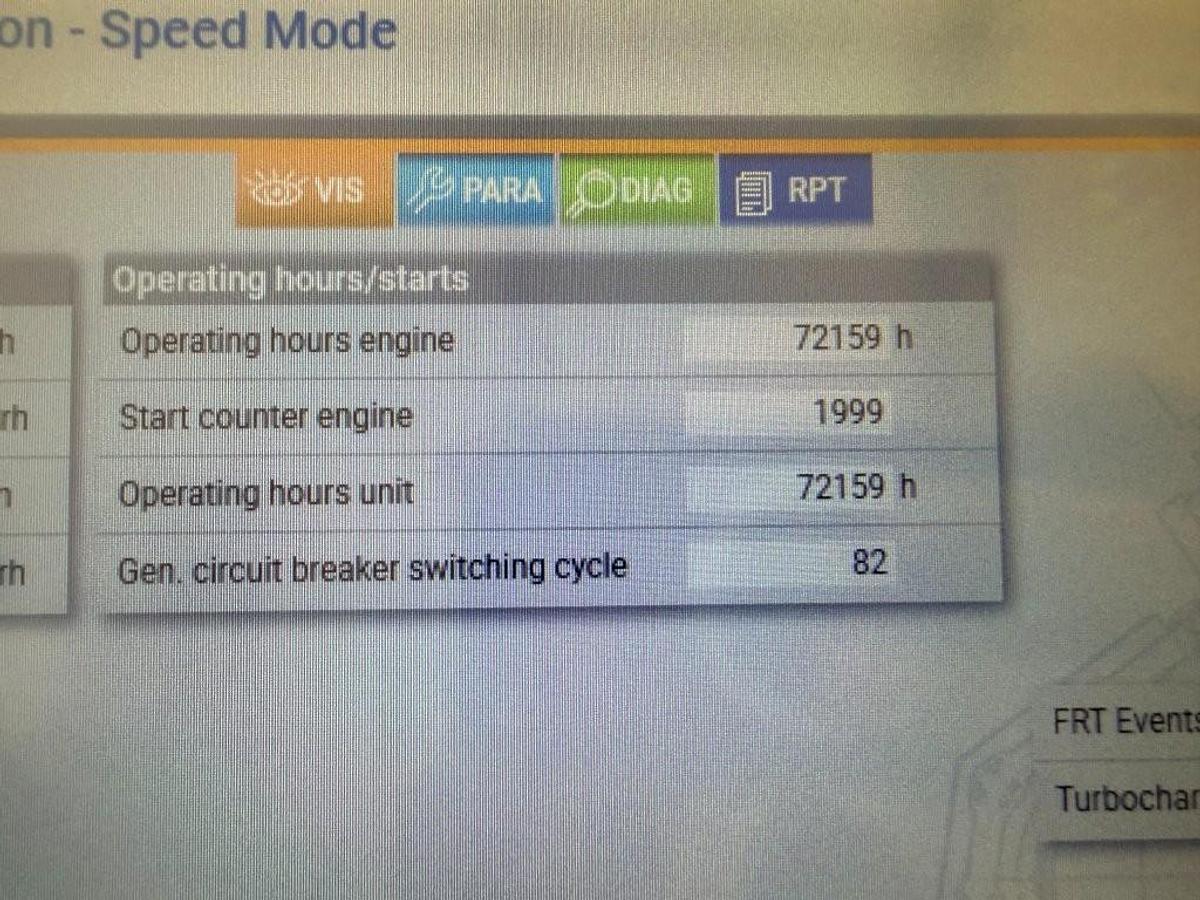

If you require additional information such as serial numbers, operating hours, inspection reports, pricing, or additional technical documentation, please let us know, and we would be happy to provide it.
